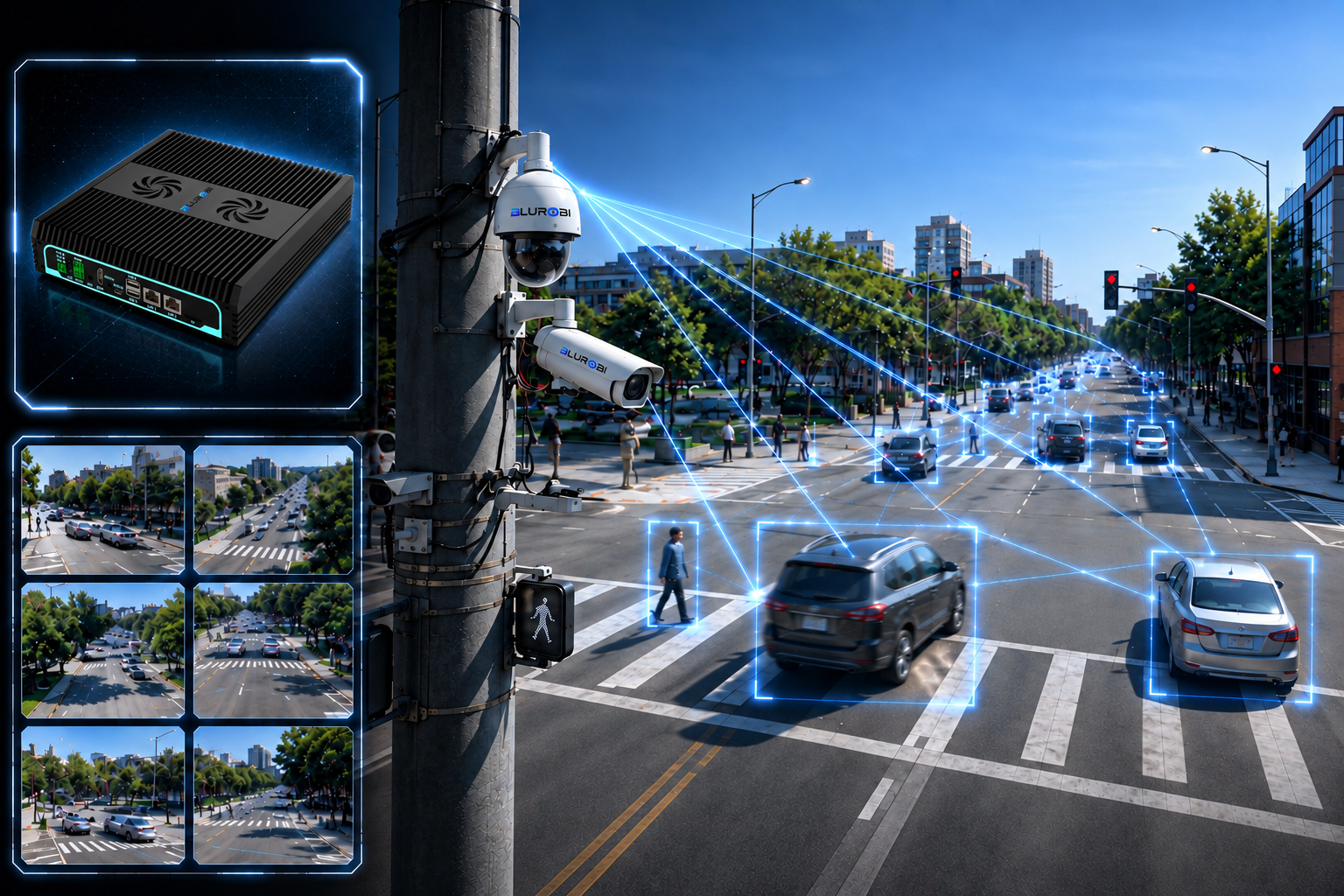

Cross‑Camera Continuous Tracking
Stitches multi‑camera views and tracks targets with unified tagging across perspectives.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

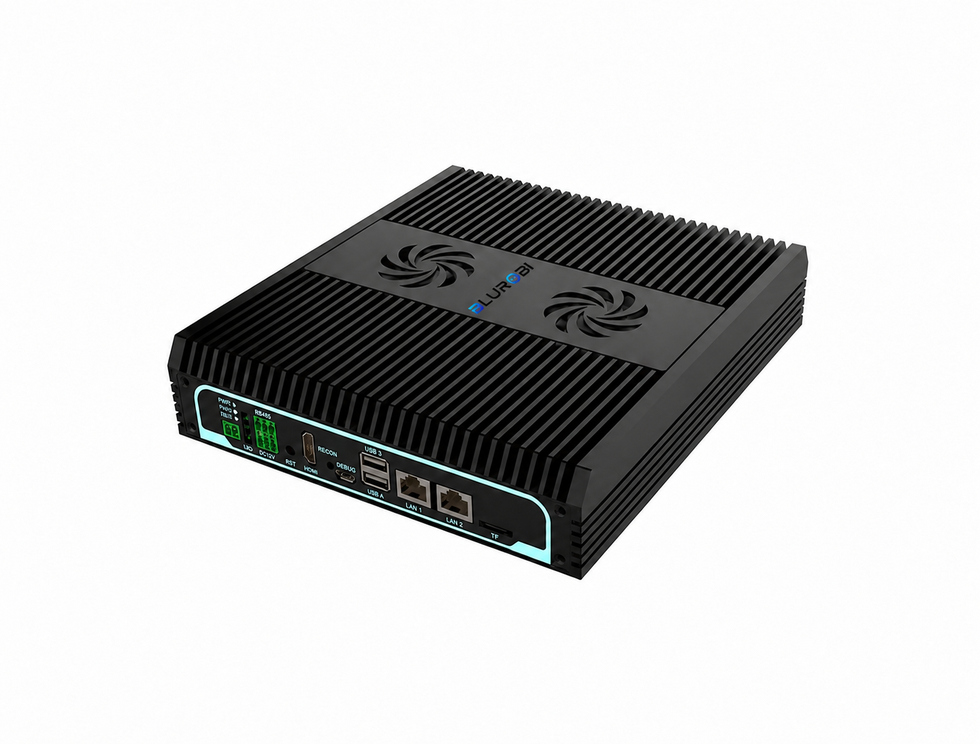

SV-ETL-X3-EX Edge Computing Terminal
High-performance AI edge computing terminal equipped with 8-core Cortex A55 processor delivering 16.
0 TOPS computing power.
Supports parallel access and real-time processing of multiple video streams for detection, tracking and behavior recognition of motor vehicles, non-motor vehicles and pedestrians.
Decodes up to 16 channels of 1080P video or 4 channels of 4K video.
Ideal for digital intersections, vehicle-road-cloud integration, roadside parking management, traffic order control and urban governance applications.

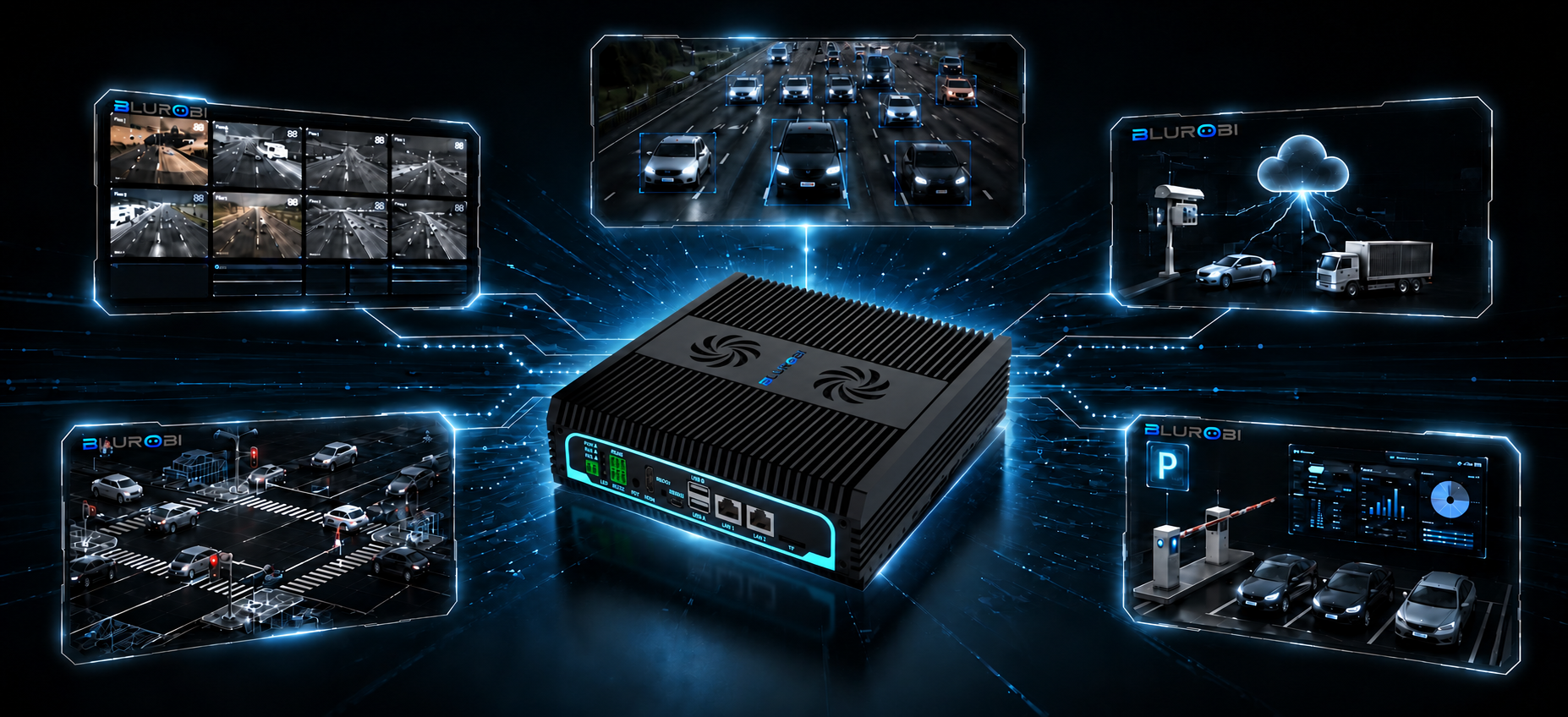

Product Display
Showcase of product features and physical appearance.
SV-ETL-X3-EX Edge Computing Terminal
- Onboard AI edge computing performs video analysis, object‑behavior evaluation and platform data upload.
- Works with fixed and PTZ cameras for target analysis and data transmission.
- Enables remote batch silent upgrades, configuration and cloud backup‑restore.
- Offline time sync keeps accurate system time without network.
- Multi‑channel video decoding; local cache with auto‑resume after network recovery.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.

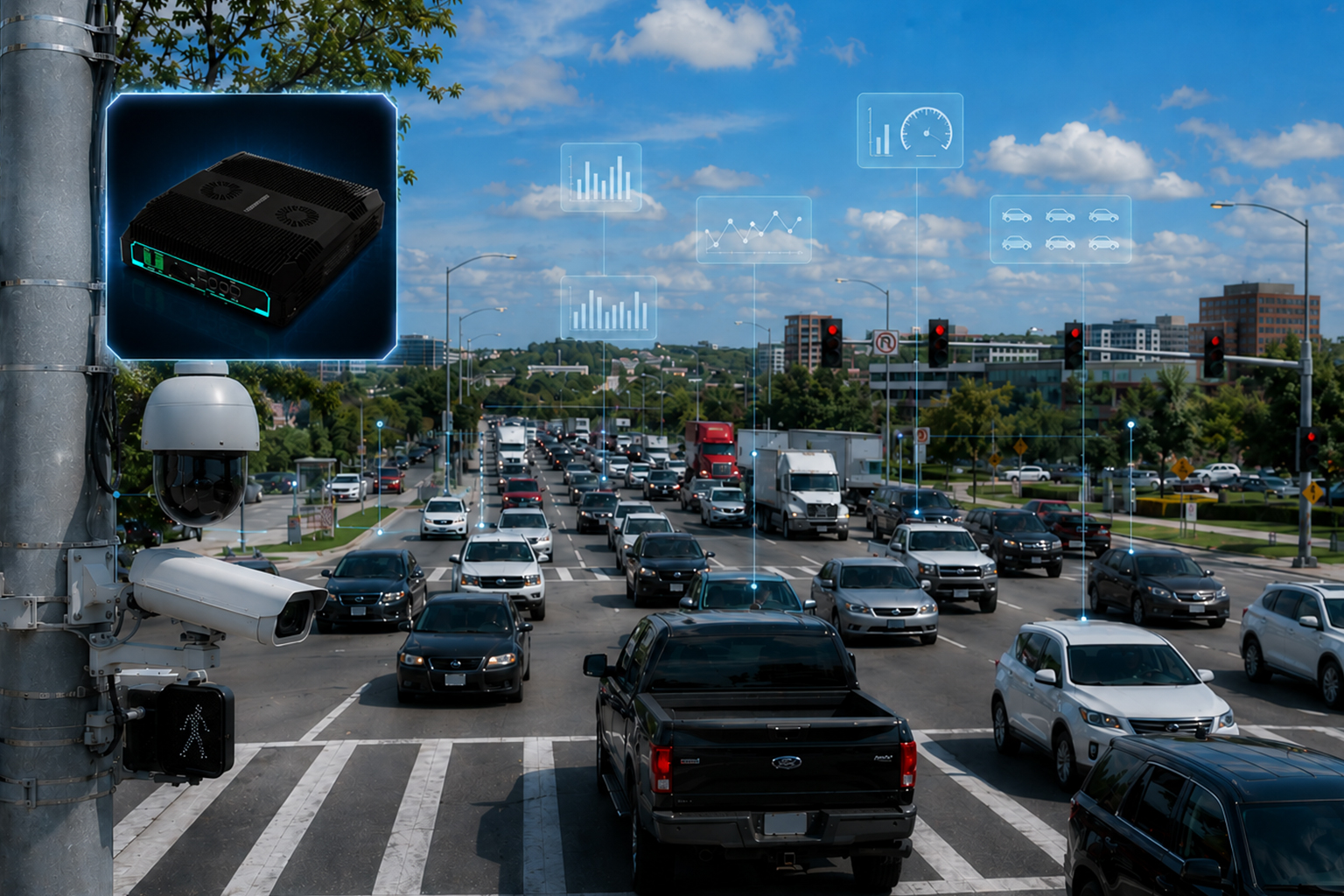

Traffic Parameter Collection
Outputs traffic flow,speed,lane occupancy and other key lane‑level statistics.

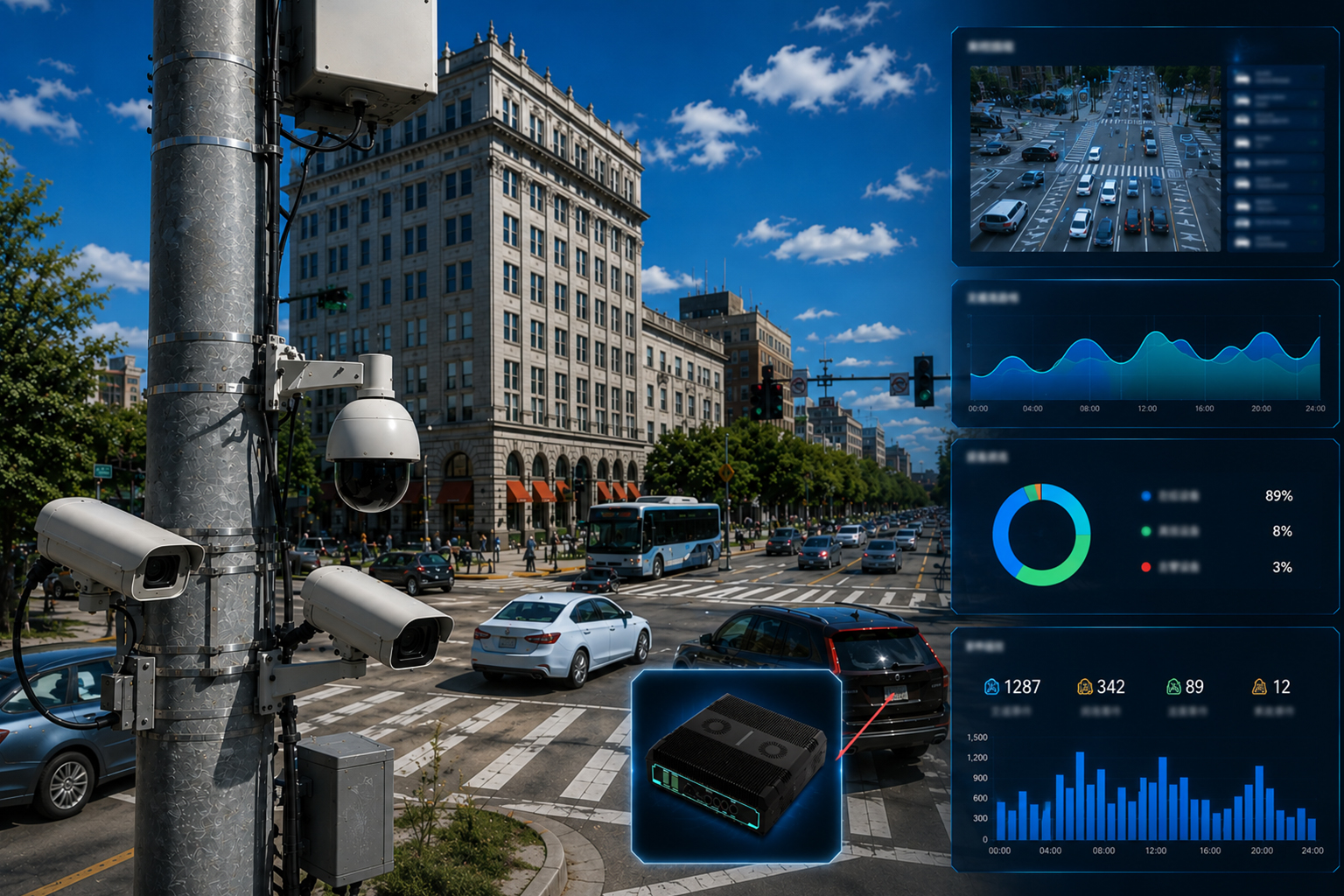

AI Edge Video Structuring
Performs on‑site video analysis,object‑behavior judgment and platform data upload.
Flexible O&M & Stable Data Transmission
Multi‑channel video decoding,remote batch management,off‑sync time support and offline local data cache.
Application Scenarios
Typical real‑world deployment environments for the product.

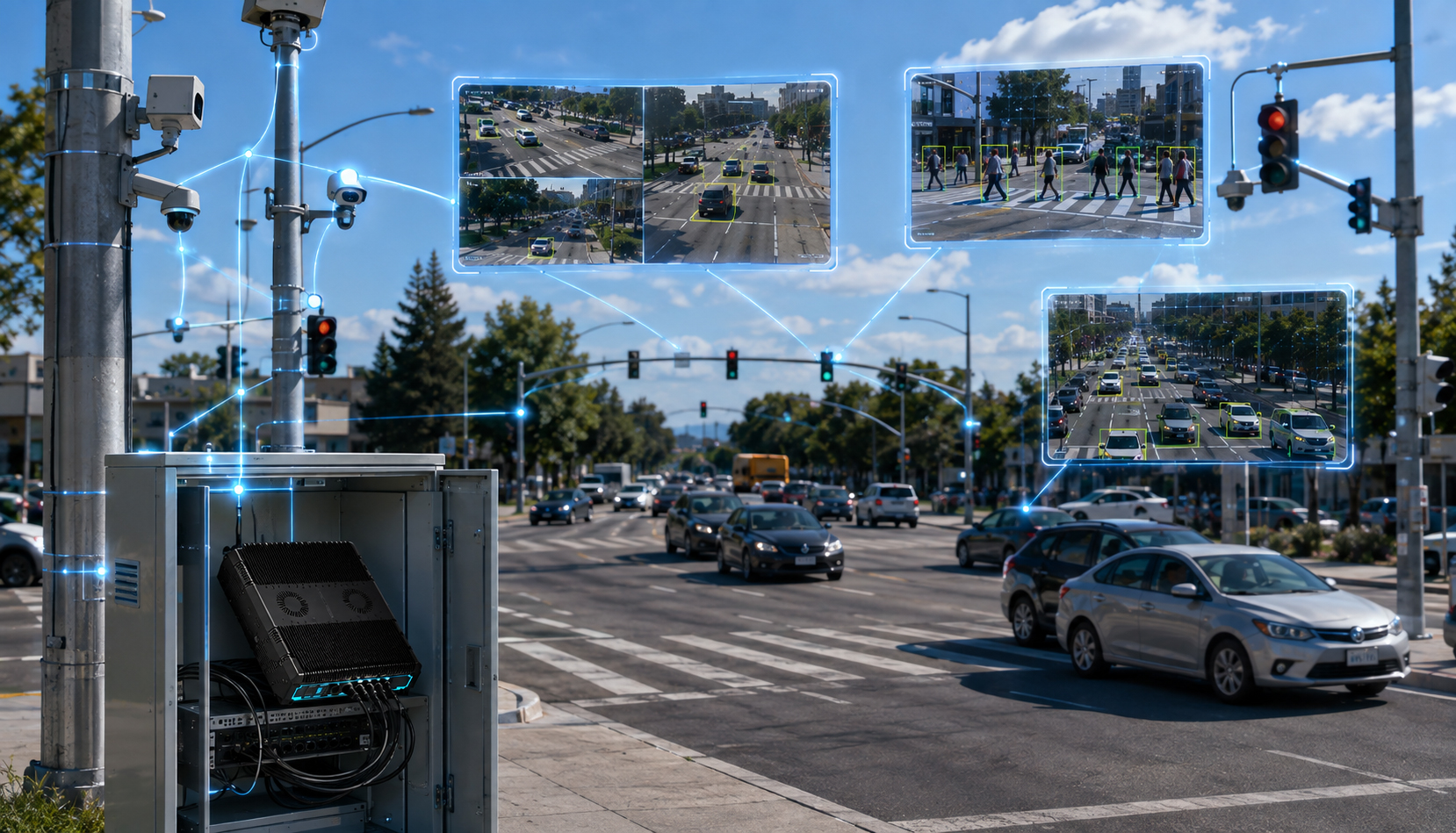

Intersection AI Signal Control
Real‑time traffic & pedestrian detection for adaptive traffic‑light scheduling.

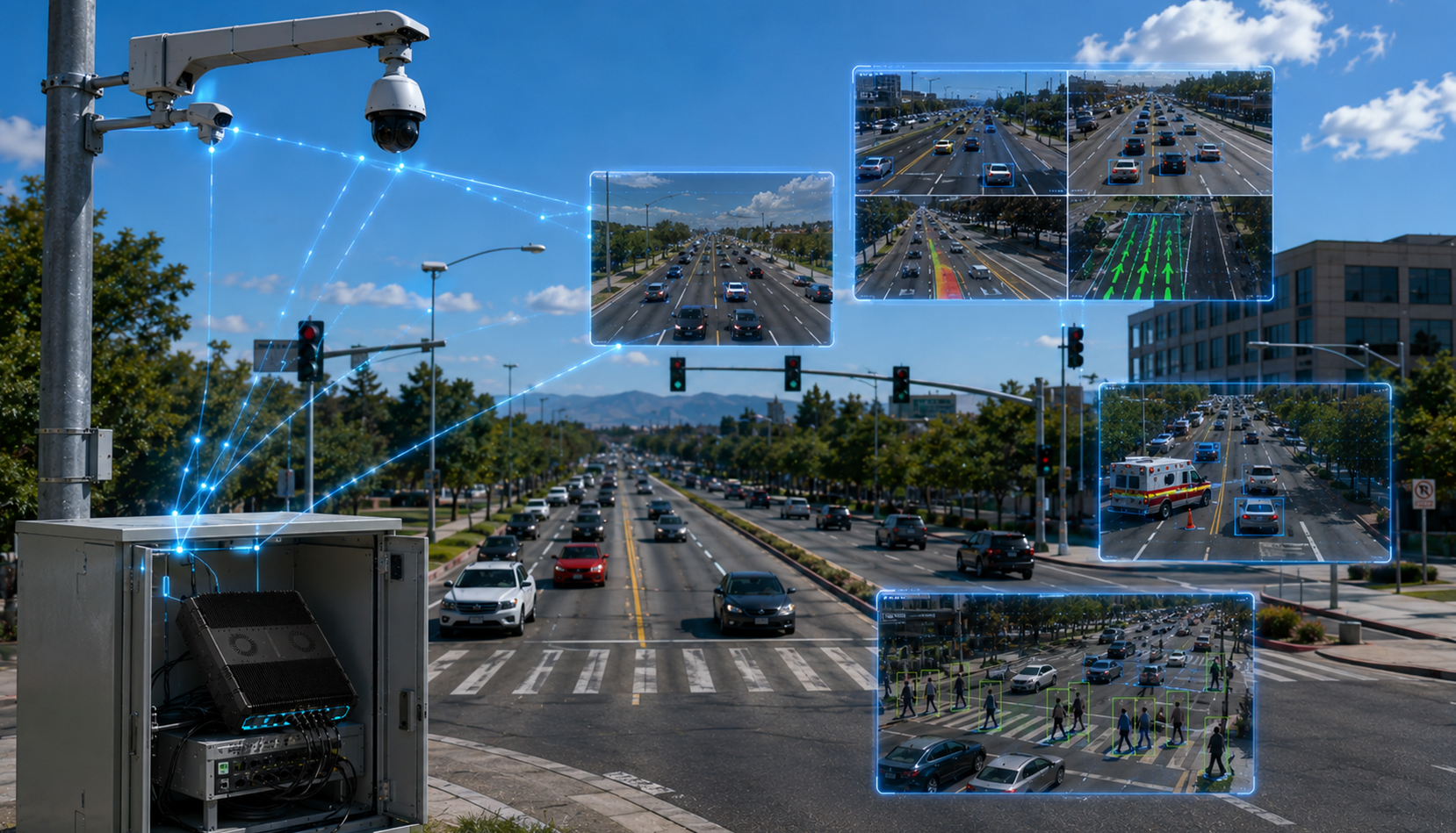

Arterial‑Road Traffic Management
Collect road‑traffic data to improve driving efficiency across road segments.
Signal Closed‑Loop Co‑Control
Multi‑device linkage enables cross‑scene traffic‑signal collaborative adjustment.
Product Specifications
Showcase of product features and physical appearance.
- Processor
- CPU8-core Cortex A55, max 1.5 GHz
- Computing Power16.0 TOPS
- Memory / Storage8 GB LPDDR4X + 32 GB Flash
- Operating SystemUbuntu 20.04
- Interfaces
- Ethernet Ports2 x Gigabit Ethernet
- USB Ports2 x USB 3.0
- Debug / Serial1 x USB Debug, 1 x RS485
- SD Card Slot1 x TF Card Slot (32 GB default)
- Video Output1 x HDMI
- Video Decoding
- Decoding CapacityUp to 16-ch 1080P or 4-ch 4K video; JPEG image decoding supported
- General
- Power InputDC 9.6 ~ 14.4 V
- Average Power Consumption<= 13 W
- Operating Temperature-30 C ~ 70 C
- Humidity Resistance93% +/- 3% RH (non-condensing)
- Dimensions203 x 230 x 46.5 mm (L x W x H)
- Weight2.5 kg
