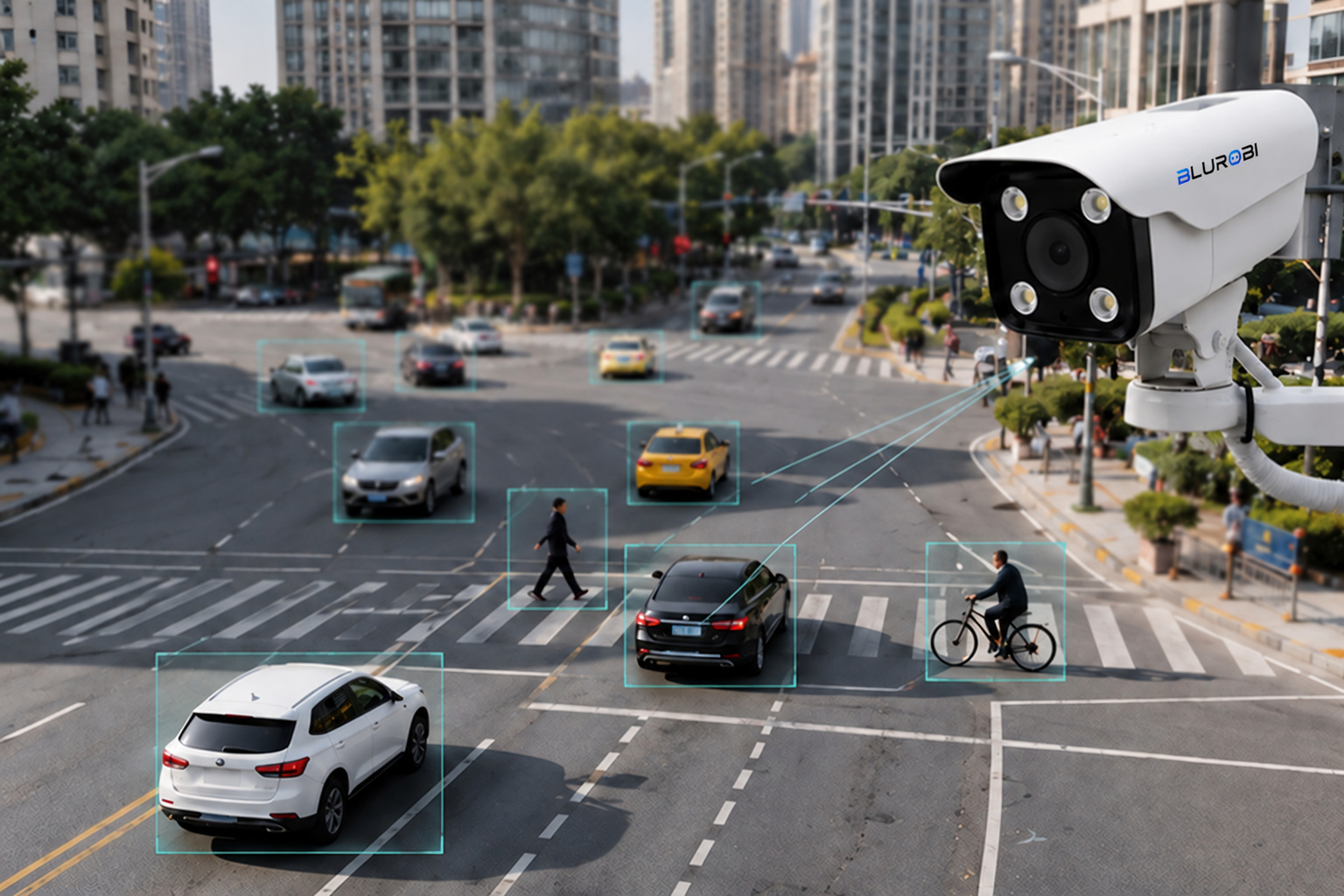

Built-In AI Event Detection
Detects traffic events directly on the camera without an external analytics server, reducing deployment complexity and system cost.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

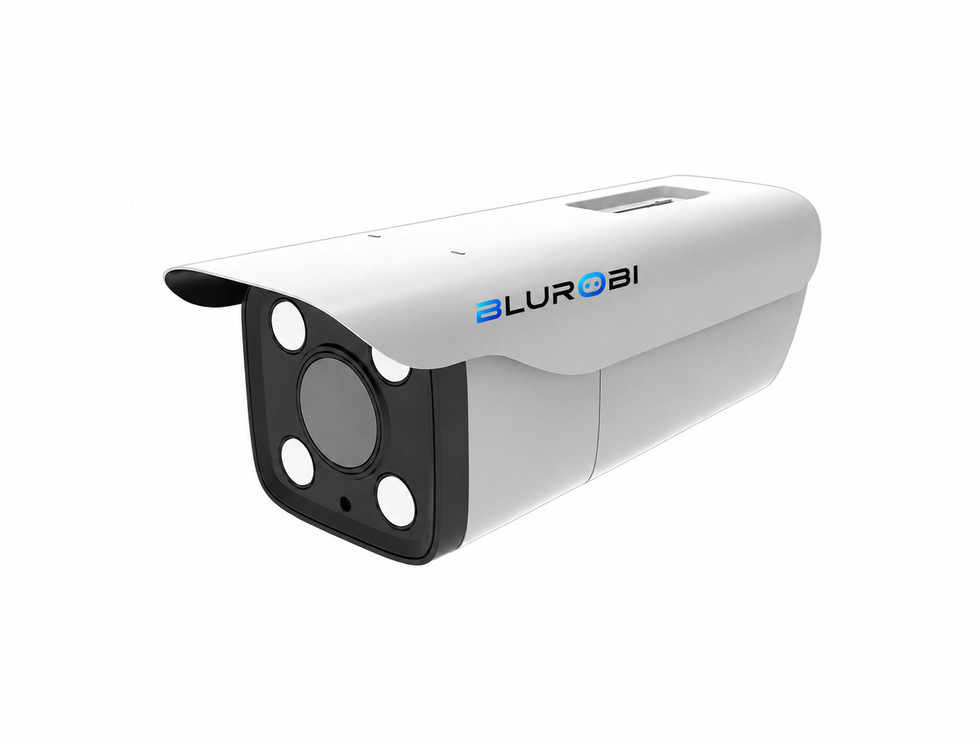

SV-ETL-C1A-EX Traffic Incident Detection Camera
8MP 1/1.8-inch starlight CMOS camera designed for road traffic incident detection.
Built-in high-performance AI computing module detects stopped vehicles, wrong-way driving, pedestrians, fallen objects, traffic congestion, lane departure and other abnormal traffic incidents.
Integrated smart LED fill light with auto brightness adjustment and strong-light suppression.
IP67 rated with remote IoT management.
Product Display
Showcase of product features and physical appearance.
Product Design & Dimensions
- Optical Window—Clear imaging.
- Smart LED Light—Low-light support.
- 8–32 mm Zoom—Motorized adjustment.
- Compact Design—306.5 × 115 × 104 mm, 1.7 kg.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.

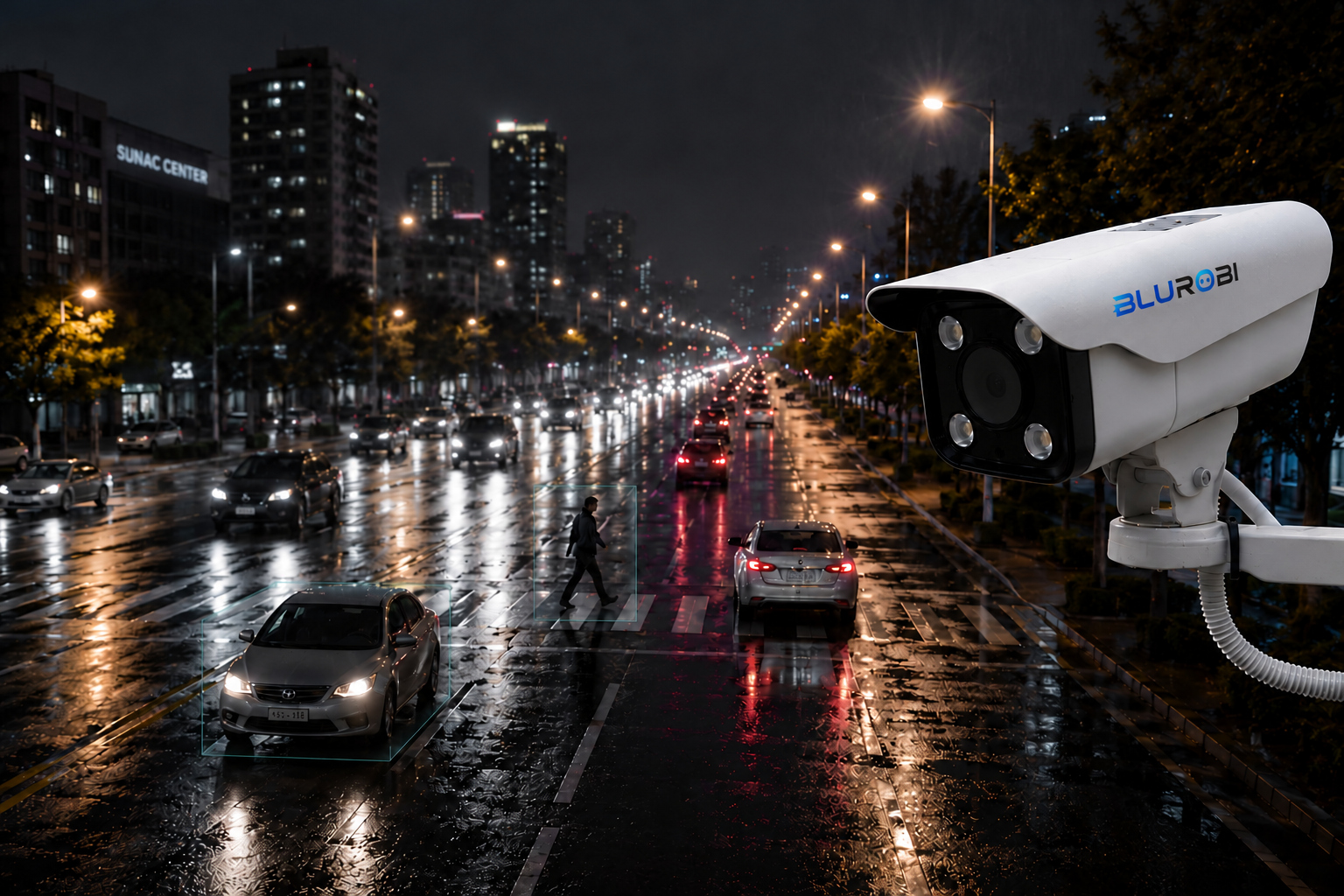

All-Weather Starlight Imaging
Delivers clear, stable imaging in low light, glare, and changing conditions for reliable 24/7 monitoring.

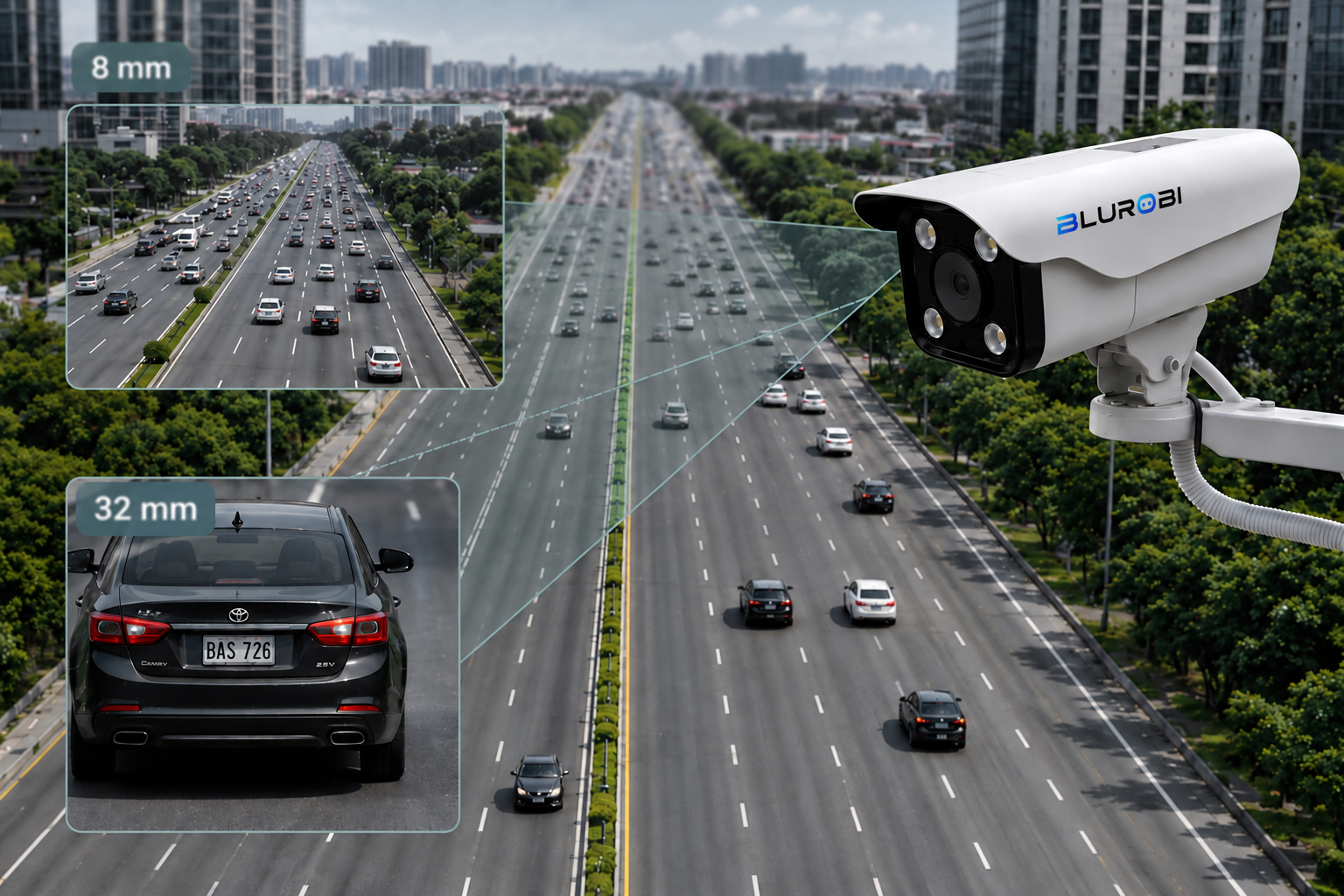

Motorized Zoom Coverage
Supports flexible 8–32 mm zoom adjustment to match different installation heights and monitoring distances.

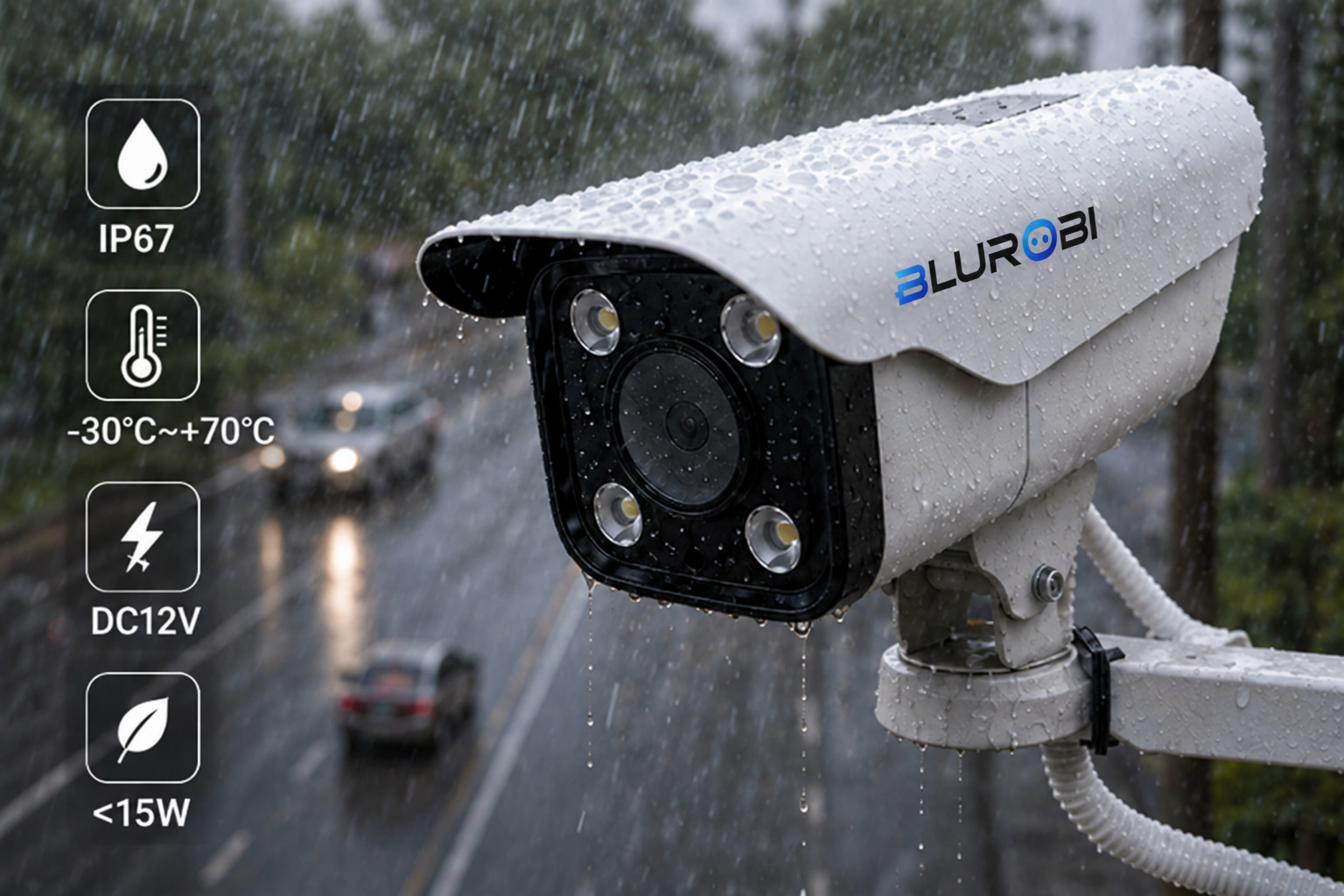

Industrial-Grade Protection
Built for roadside environments with IP67 protection, wide-temperature operation, and efficient low-power performance.
Application Scenarios
Typical real‑world deployment environments for the product.

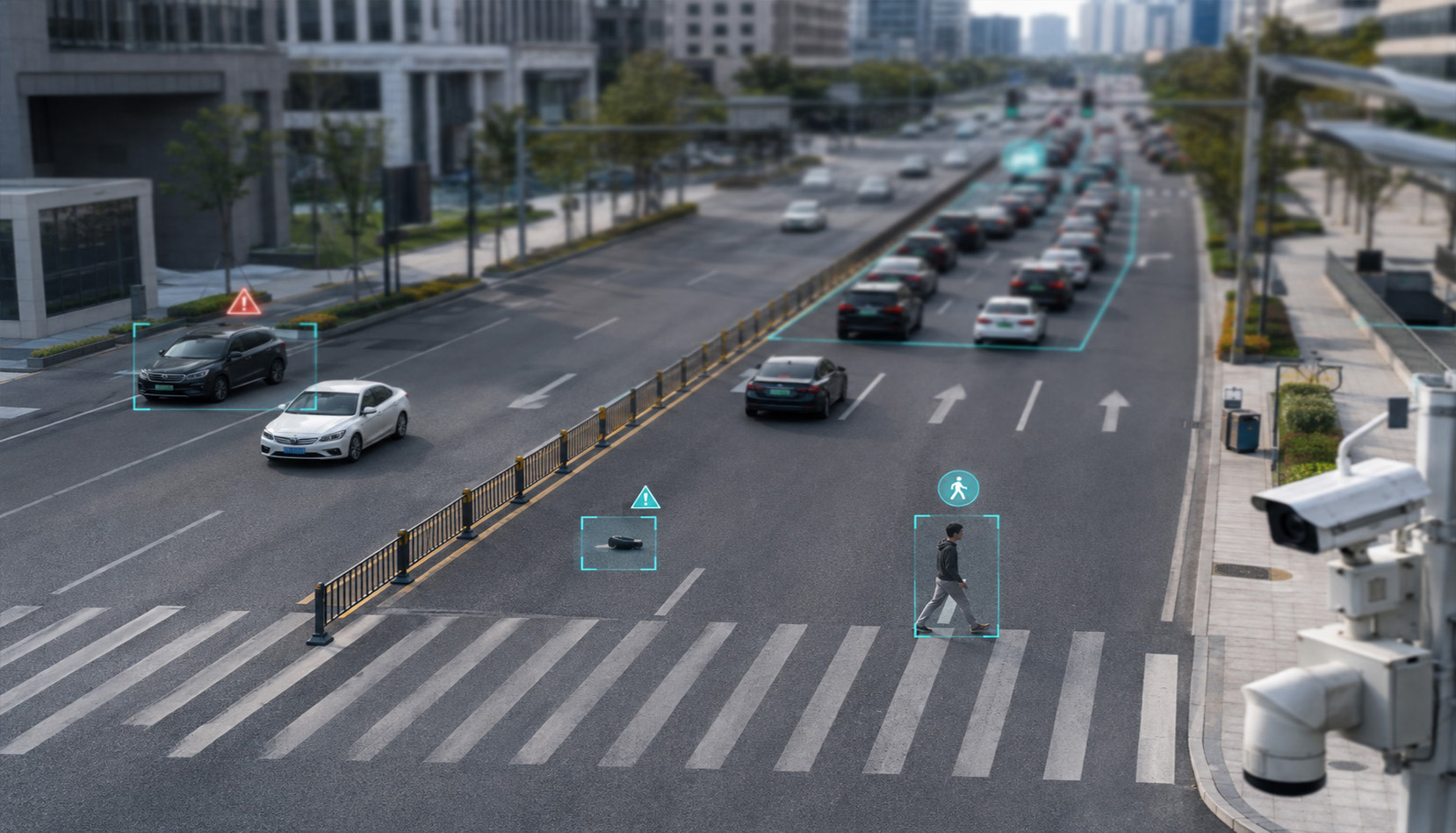

Urban Arterial Monitoring
Detects stopped vehicles, congestion, pedestrians, and debris, with real-time alerts to traffic management platforms.

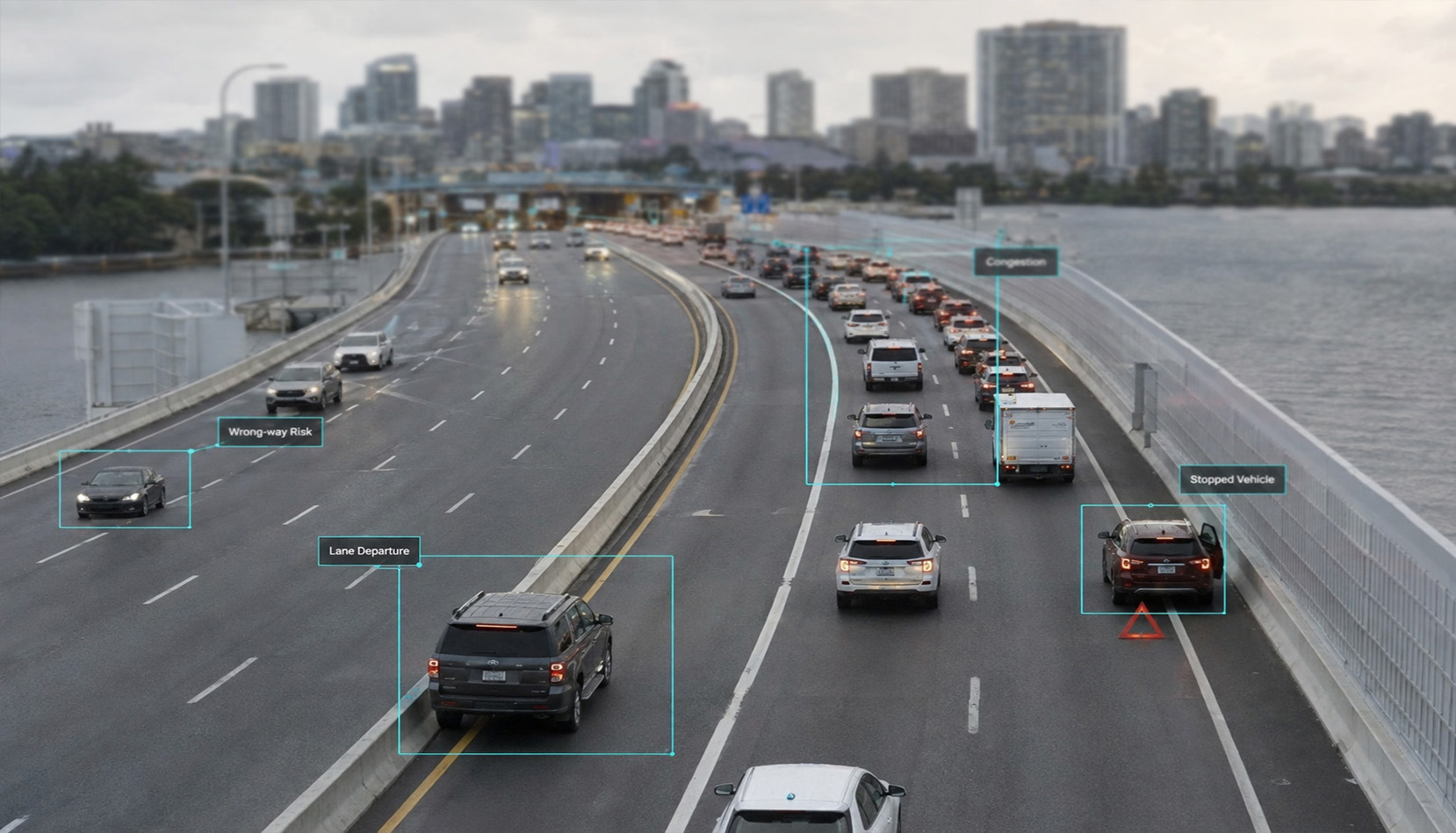

Expressway Monitoring
Monitors bridges, tunnels, and key road sections for wrong-way driving, stops, congestion, and lane violations.

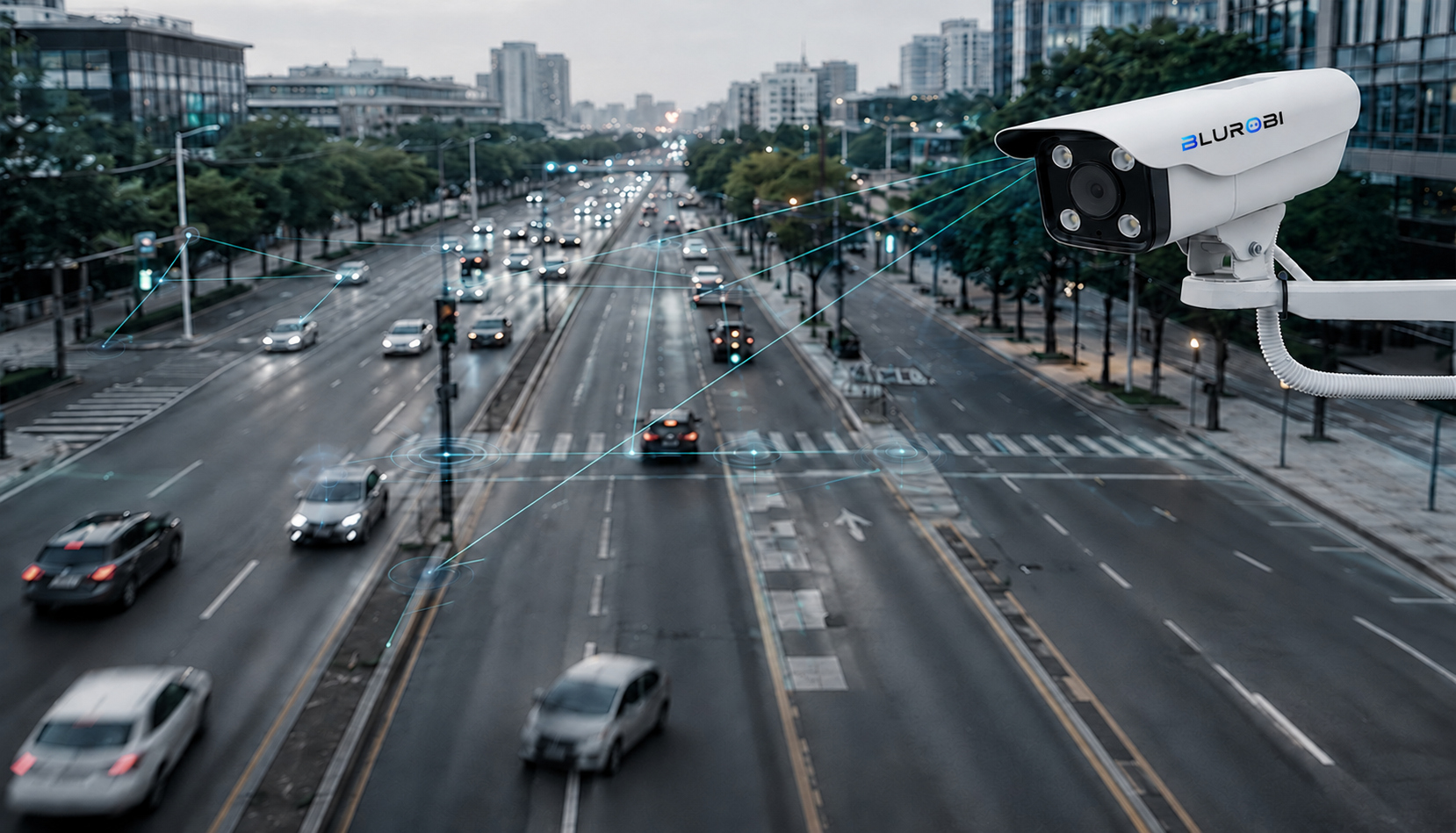

Digital Road Sensing
Works with edge and management platforms to build a connected roadside sensing network.
Product Specifications
Showcase of product features and physical appearance.
- Hardware
- Sensor8 MP, 1/1.8-inch Starlight CMOS
- Min IlluminationColor: 0.001 lx (AGC ON) / B/W: 0.0001 lx (AGC ON)
- ProtocolONVIF, GB/T 28181
- CompressionH.264, H.265
- Bitrate256 Kbps ~ 16 Mbps
- Frame Rate1 ~ 30 fps
- ShutterAuto/Manual 1/25 ~ 1/1000 s
- Noise Reduction2D/3D Digital Noise Reduction
- Wide Dynamic RangeDigital WDR
- Max Resolution3840 x 2160
- Main Stream3840 x 2160 @ 30 fps (configurable)
- Sub Stream1920 x 1080 @ 30 fps (configurable)
- Lens
- Focal Length8 ~ 32 mm Motorized Zoom
- Lens MountCS
- AI Incident Detection
- Detection TypesStopped vehicles, wrong-way driving, pedestrians, fallen objects, traffic congestion, lane departure
- IlluminatorIntegrated smart LED fill light with auto brightness adjustment
- Strong-Light SuppressionAuto image brightness optimization based on vehicle headlights
- Function Settings
- Image AdjustmentBrightness, contrast, saturation, hue, sharpness
- ExposureWhite balance, backlight compensation, image enhancement, day/night mode
- Video SettingsEncoding, resolution, frame rate, bitrate control, image quality, I-frame interval
- Image SettingsEncoding, resolution, image quality
- Network SettingsNetwork settings, port, protocol
- StorageRecording, snapshot, schedule management
- SystemGeneral settings, output mode, user management, config management, upgrade, auto maintenance
- Image CaptureHTTP image capture with configurable quality levels
- General
- Power InterfaceDC5521
- NetworkRJ45
- VoltageDC 12V +/- 5%
- Power Consumption< 15 W
- Weight~ 1.7 kg
- Dimensions~ 306.5 x 115 x 104 mm
- Operating Temp-30 C ~ 70 C
- ProtectionIP67
- Applications
- ApplicationsTraffic incident detection on highways, urban roads, tunnels, and bridges.
