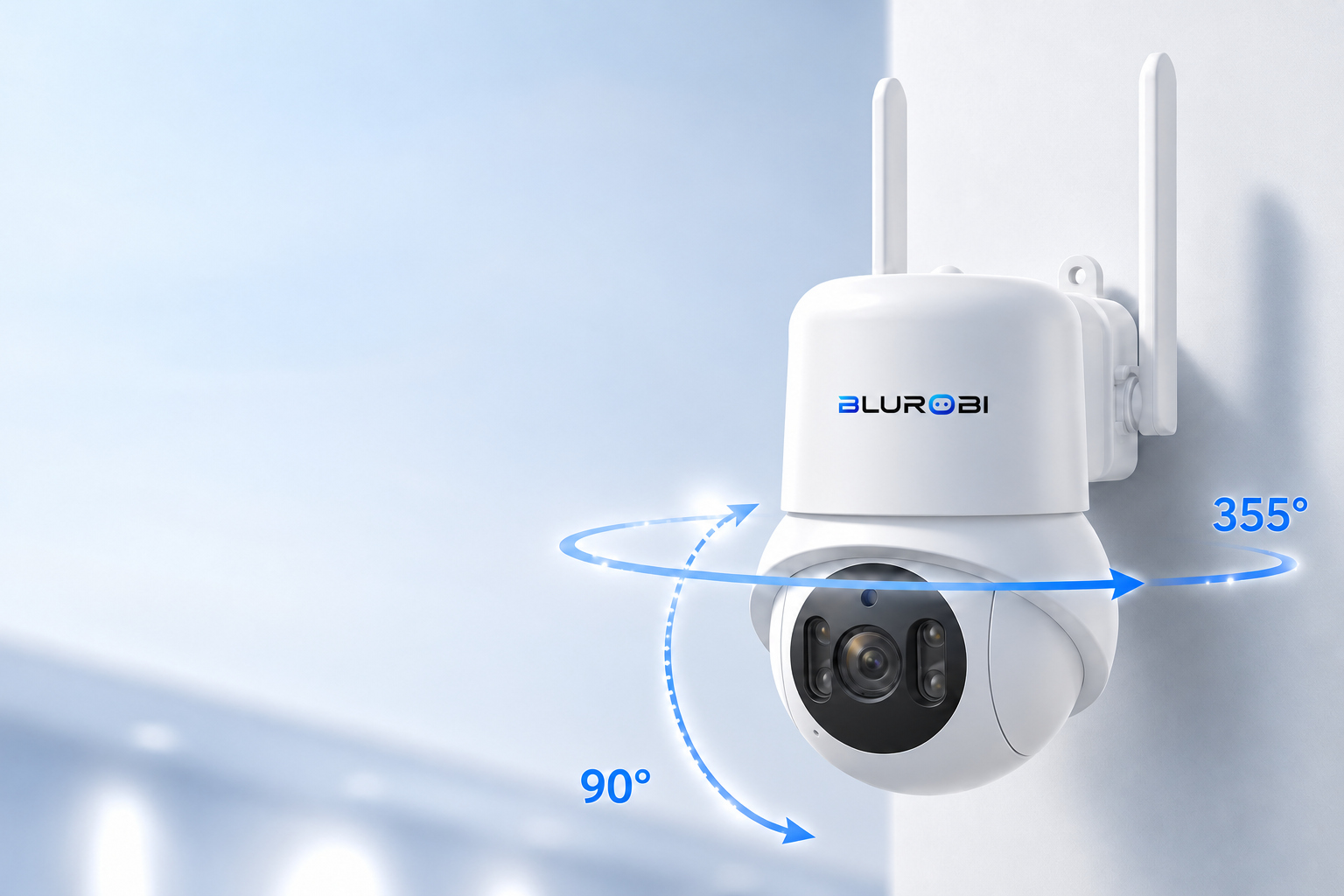

Pan‑Tilt‑Zoom Coverage
Supports 355° horizontal and 90° vertical rotation for wide‑range cruise monitoring, minimizing blind spots.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

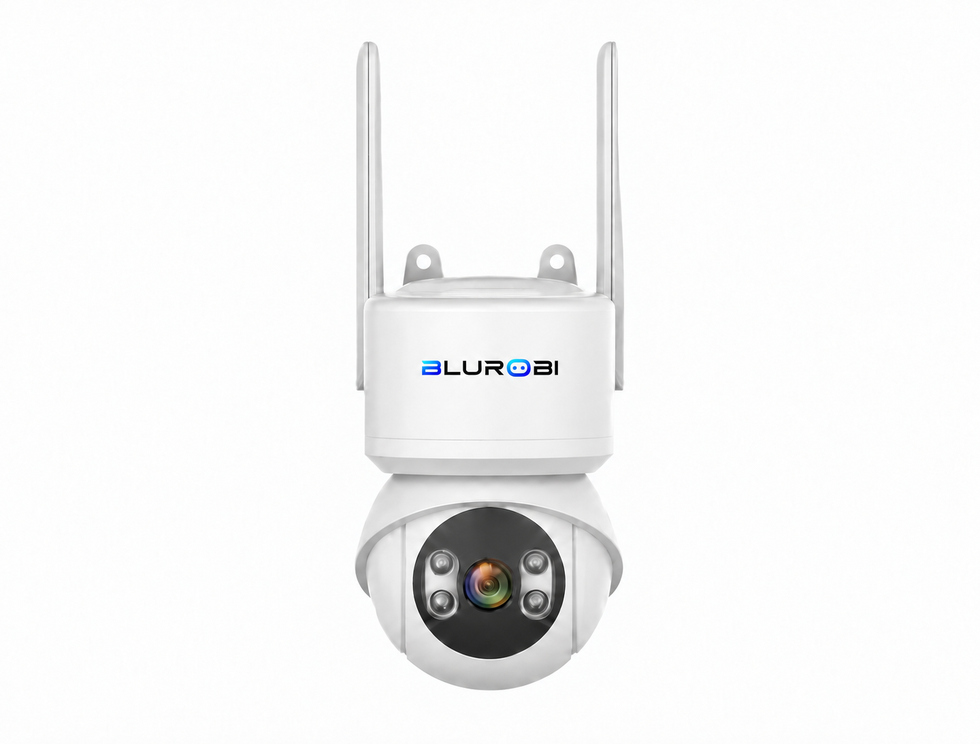

CA-31001 Dome Network Camera
Starlight 2MP CMOS home camera with 3.6mm lens.
Built-in 8 LED fill lights (4 IR + 4 white light), effective illumination range of 5-10 meters.
Supports Wi-Fi connection, with AP hotspot and BLE App provisioning available.
Supports human motion detection detection.
Product Display
Showcase of product features and physical appearance.
CA-31001 Dome Network Camera
- Starlight 2MP CMOS home camera with 3.6mm lens
- Built-in 8 LED fill lights (4 IR + 4 white light), effective illumination range of 5-10 meters
- Supports Wi-Fi connection, with AP hotspot and BLE App provisioning available
- Supports human motion detection detection.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.
Smart Detection & Alerts
Features motion detection and human intrusion detection. Real‑time alert notifications are pushed to the APP once anomalies are detected.
Two‑Way Audio & Event Recording Storage
Built‑in microphone and speaker enable real‑time two‑way audio talk. Abnormal events trigger automatic recording, with support for local and cloud storage.
4Wi‑Fi Setup & Smart Cruise
Wi‑Fi‑enabled for cable‑free, easy installation. Supports auto‑cruise of up to 6 preset positions.
Application Scenarios
Typical real‑world deployment environments for the product.
Home Monitoring
355°×90° coverage, human‑detection APP alerts, two‑way audio, local/cloud storage, Wi‑Fi & 6‑preset auto‑cruise for full‑room home security.
Shop Monitoring
355°×90° wide view, intrusion‑triggered APP alerts, two‑way talk, event recording, local/cloud storage, Wi‑Fi and 6‑preset auto‑cruise to safeguard your shop.
Pet Monitoring
355°×90° rotation, motion‑triggered APP alerts, two‑way audio interaction, local/cloud storage, Wi‑Fi & 6‑preset auto‑cruise to watch your pets remotely.
Product Specifications
Showcase of product features and physical appearance.
- Camera
- Resolution1920 x 1080
- Focal Length3.6 mm
- PTZPan 355 deg / Tilt 90 deg
- Preset Positions6
- Min Illumination0.01 Lux (F2.0, AGC ON), 0 Lux with IR
- Noise Reduction2D & 3D
- Illuminator
- LEDs4 IR + 4 White Light
- Night Vision Range5 ~ 10 m (dual-light auto-switch)
- Video & Audio
- EncodingH.264 / 20 FPS
- AudioBuilt-in mic & speaker, two-way, ADPCM
- Network & Storage
- Wi-FiIEEE 802.11 b/g/n, AP hotspot
- ProtocolsTCP/IP, UDP, HTTP, DDNS, DHCP, FTP, NTP
- StreamingONVIF supported
- StorageTF card (max 64 GB) + optional cloud
- General
- Power Supply5 V / 1.6 A
- Operating Temp-10 C ~ 50 C
- Humidity<= 95% RH
