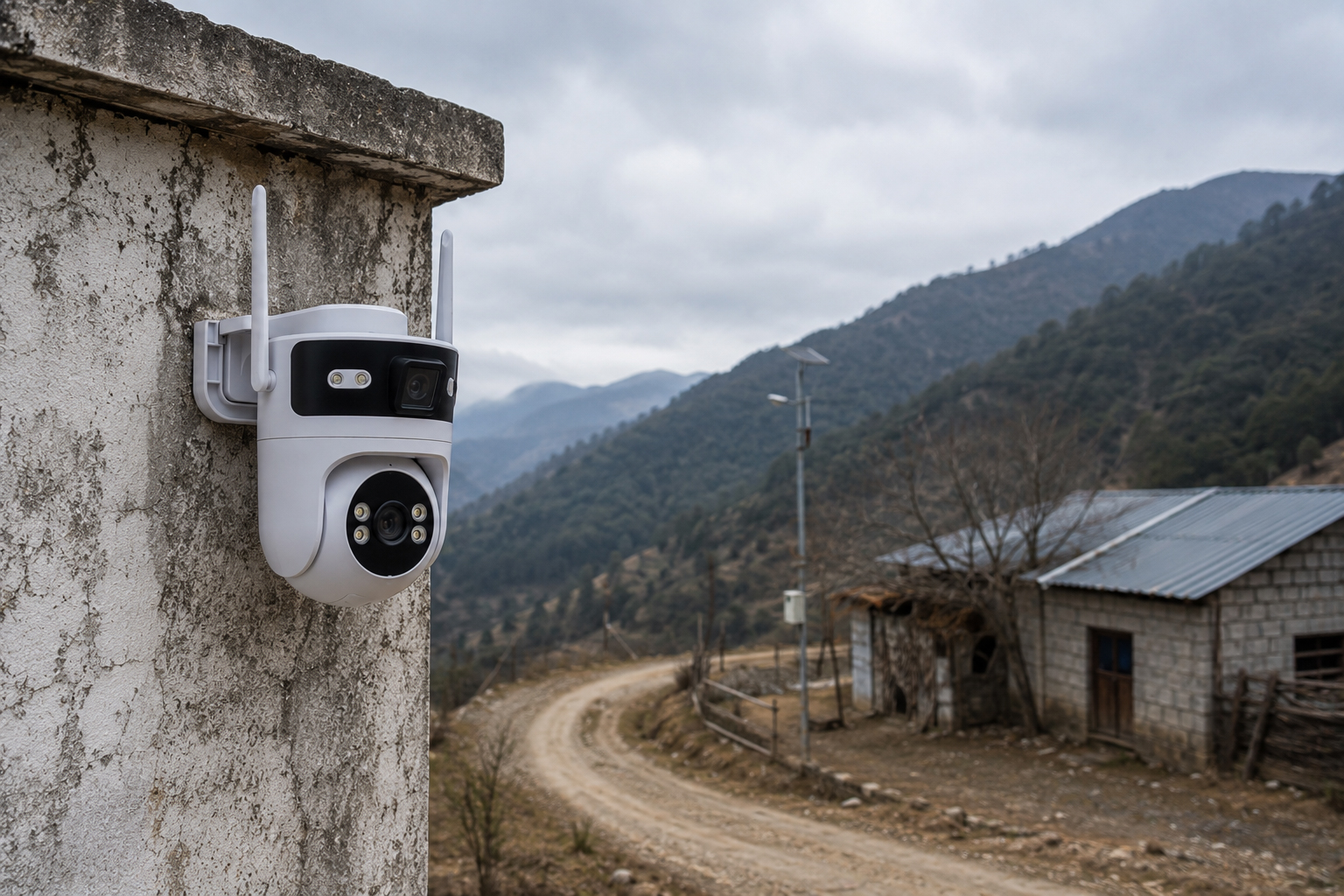

Flexible Wiring‑Free Deployment
Wi‑Fi/4G connectivity cuts cabling work, ideal for new points in old parks, remote zones and hard‑to‑run‑cable sites.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
CA-15008 Dual-Lens Dome Network Camera
Dual-lens starlight 3MP CMOS outdoor camera with 4.2 mm lens.
Wi-Fi connectivity; AP hotspot / BLE App provisioning, two-way audio, audio & visual alarm with customizable tone.
Supports privacy masking and human motion detection.
Sensor: 1/3.3" CMOS.
Product Display
Showcase of product features and physical appearance.

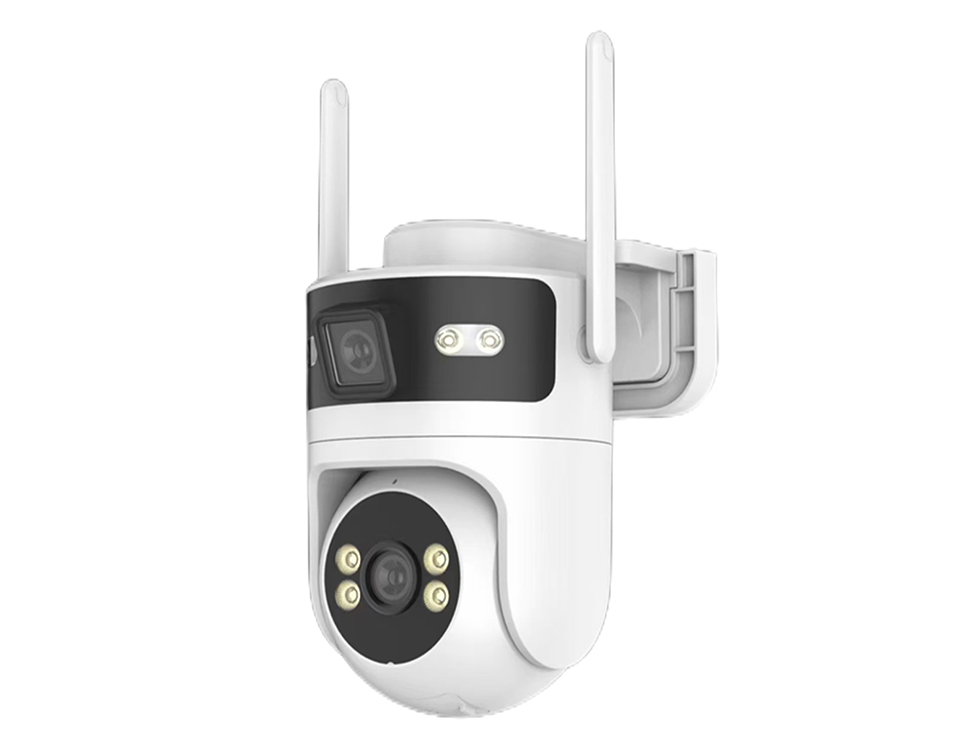

CA-15008 Dual-Lens Dome Network Camera
- Dual-lens starlight 3MP CMOS outdoor camera with 4.2 mm lens.
- Wi-Fi connectivity; AP hotspot / BLE App provisioning, two-way audio, audio & visual alarm with customizable tone.
- Supports privacy masking and human motion detection.
- Sensor: 1/3.3" CMOS.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.

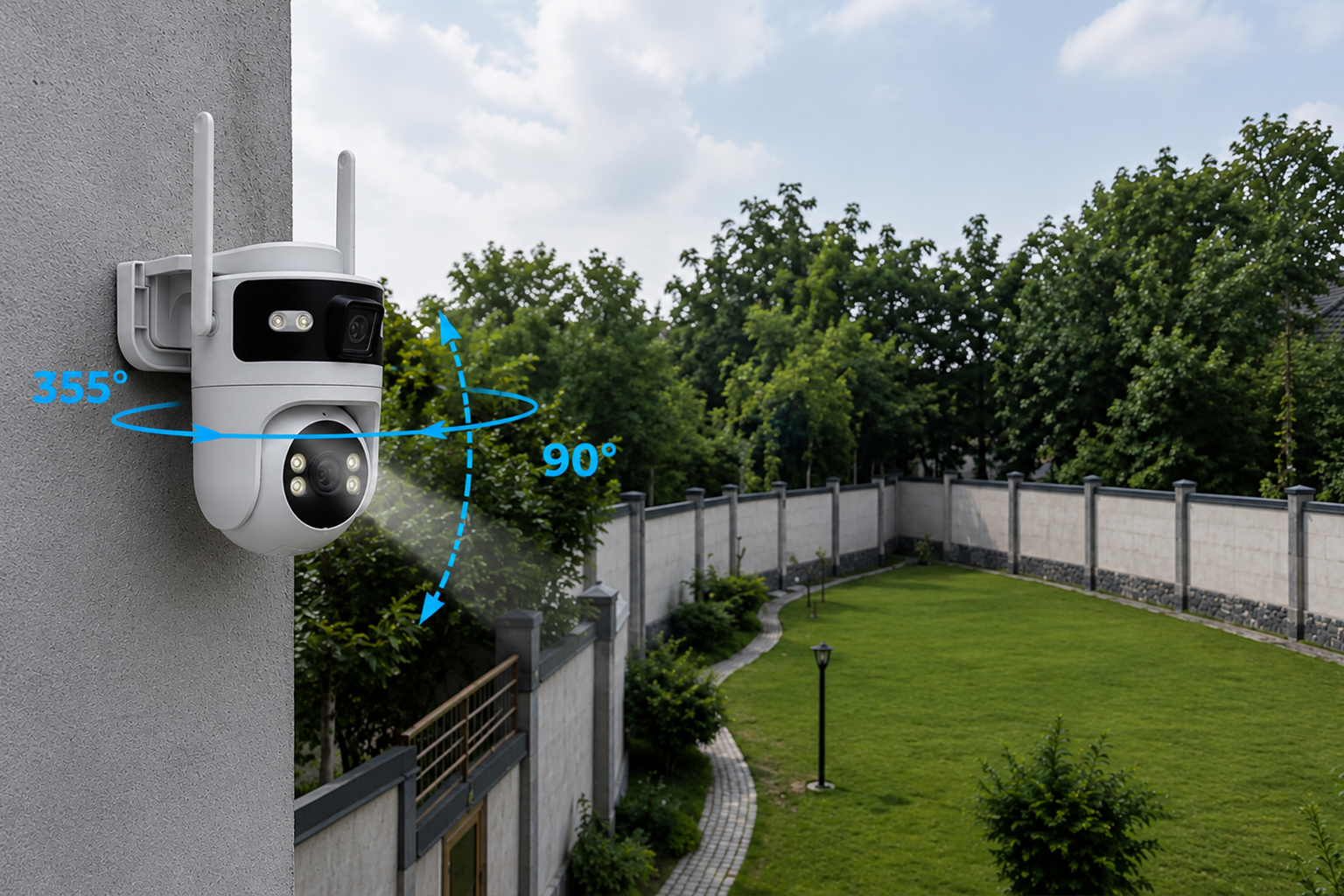

Wide‑Range PTZ Coverage
355° pan & 90° tilt expands viewing area to patrol and cover blind spots left by fixed cameras.

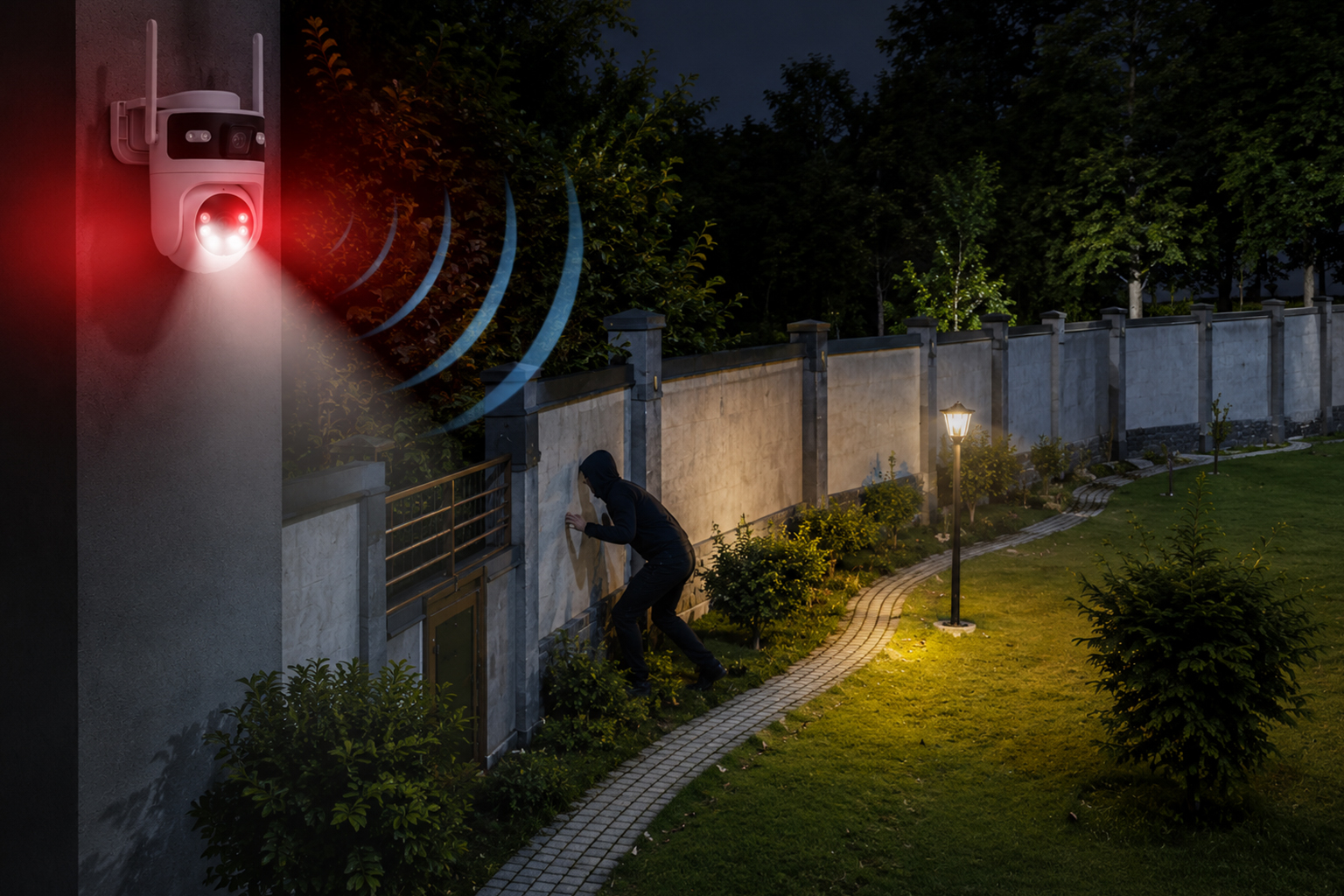

Proactive Closed‑Loop Security
Human‑motion, zone and audio detection trigger strobe‑siren alerts and two‑way audio for anomaly detection, on‑site warning and remote intervention.

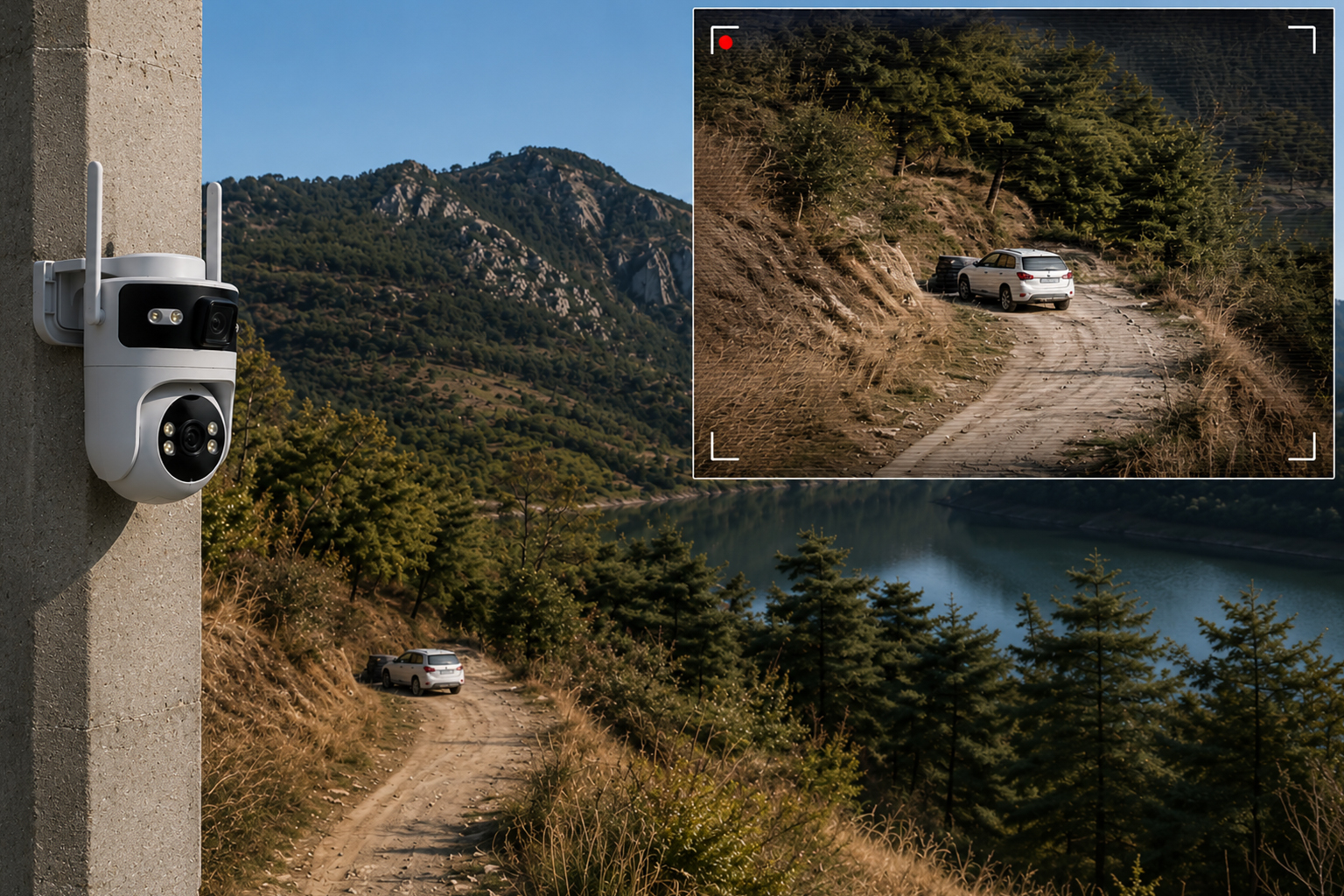

Powerful Stand‑Alone Operation
Micro‑SD local storage plus wireless network enables fast monitoring at scattered sites without a full back‑end recording system.
Application Scenarios
Typical real‑world deployment environments for the product.

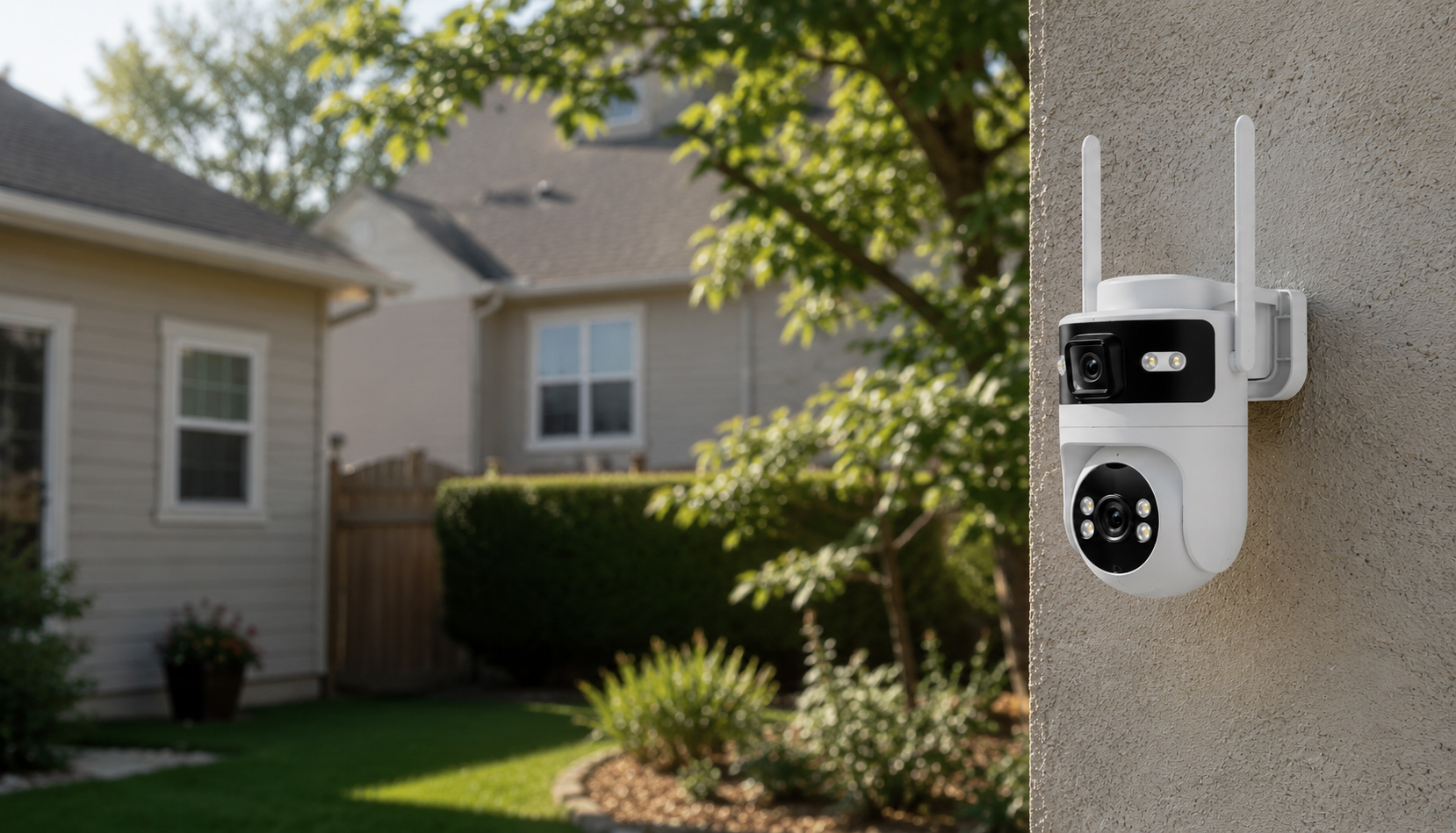

Courtyard Surveillance
24‑hour monitoring for residential & compound courtyard areas.

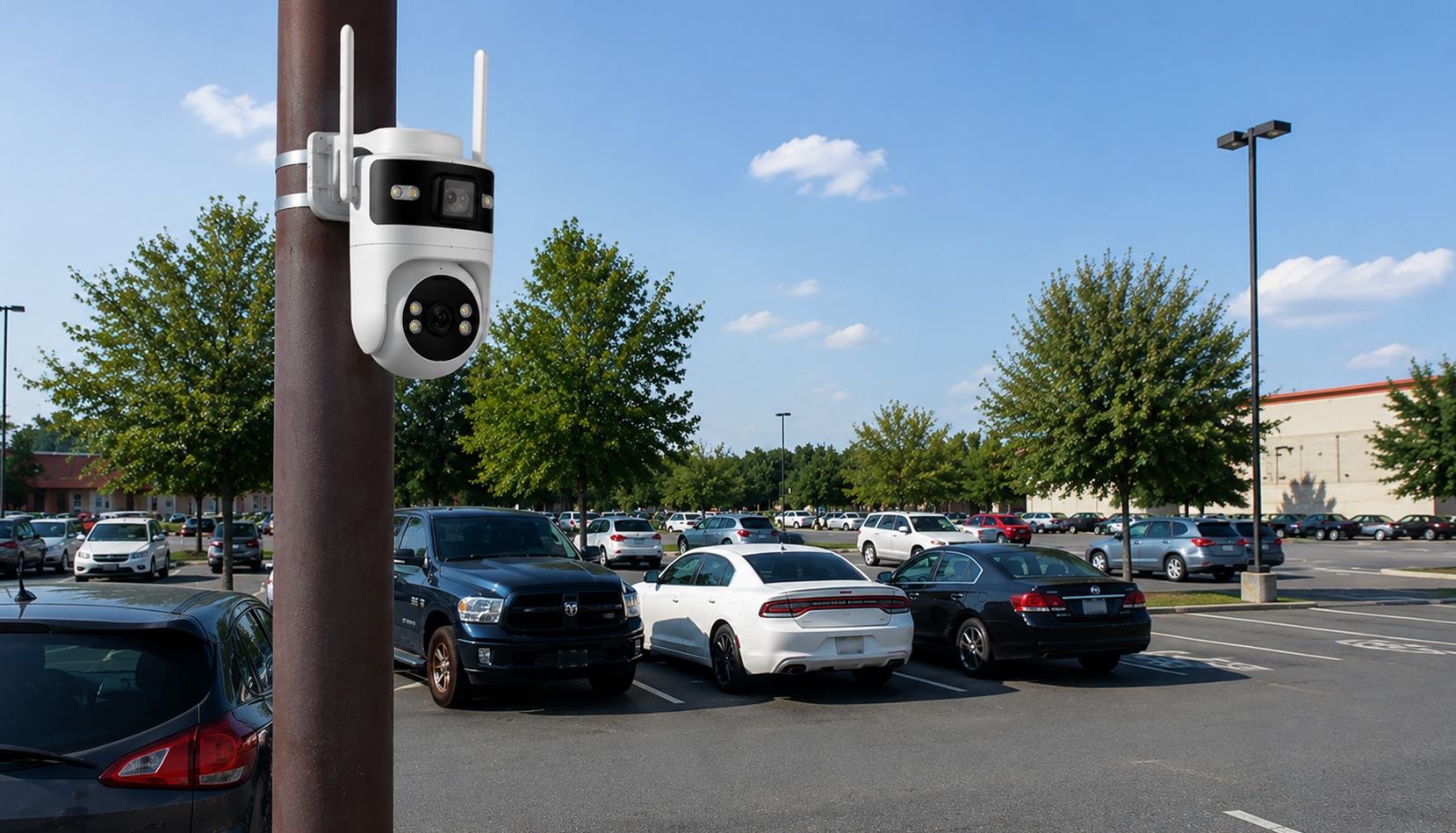

Parking‑Lot Monitoring
Continuous security oversight for open‑air parking premises.

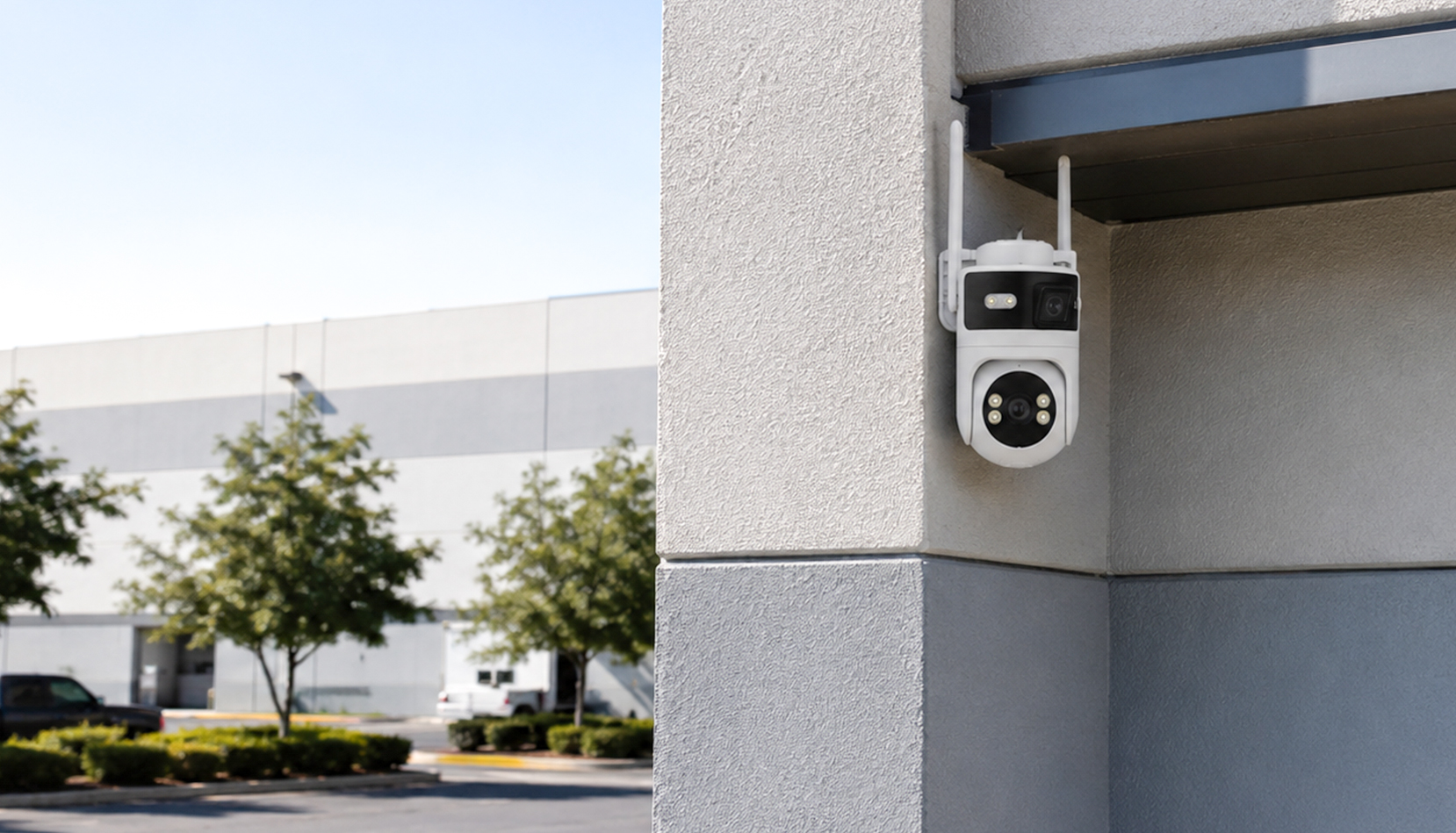

Blind‑Spot Coverage
Reliable surveillance at building corners and hard‑to‑reach locations.
Product Specifications
Showcase of product features and physical appearance.
- Camera
- Sensor1/3.3-inch 3MP Progressive Scan CMOS
- Resolution2304 x 2592 (3 MP)
- Focal Length4.2 mm
- ApertureF2.0
- FOV (H/V/D)82.6 deg / 44.3 deg / 96.4 deg
- PT RotationHorizontal 355 deg / Vertical 90 deg
- Night VisionB&W mode, 8 IR LEDs
- Video & Audio
- Video EncodingH.264
- Audio EncodingG.711a/G.722.1/G.726/MP2L2/PCM/AAC
- Audio I/OBuilt-in microphone & speaker
- Network
- Wi-FiIEEE 802.11 b/g/n, 2.412~2.484 GHz
- EncryptionWPA-PSK/WPA2-PSK, WPA/WPA2, WEP
- ConfigurationBluetooth + QR Code + AP Mode
- Functions
- Two-way AudioSupported
- Motion DetectionSupported
- Area Detection AlarmSupported
- Local StorageMicro SD slot (max 128 GB)
- General
- Power SupplyDC 5V / 2A
- Power Consumption5 W
- Dimensions17.1 x 15.6 x 12.5 cm
- Weight0.68 kg
- Operating Temp-10 C ~ 50 C
- Humidity95% RH (non-condensing)
