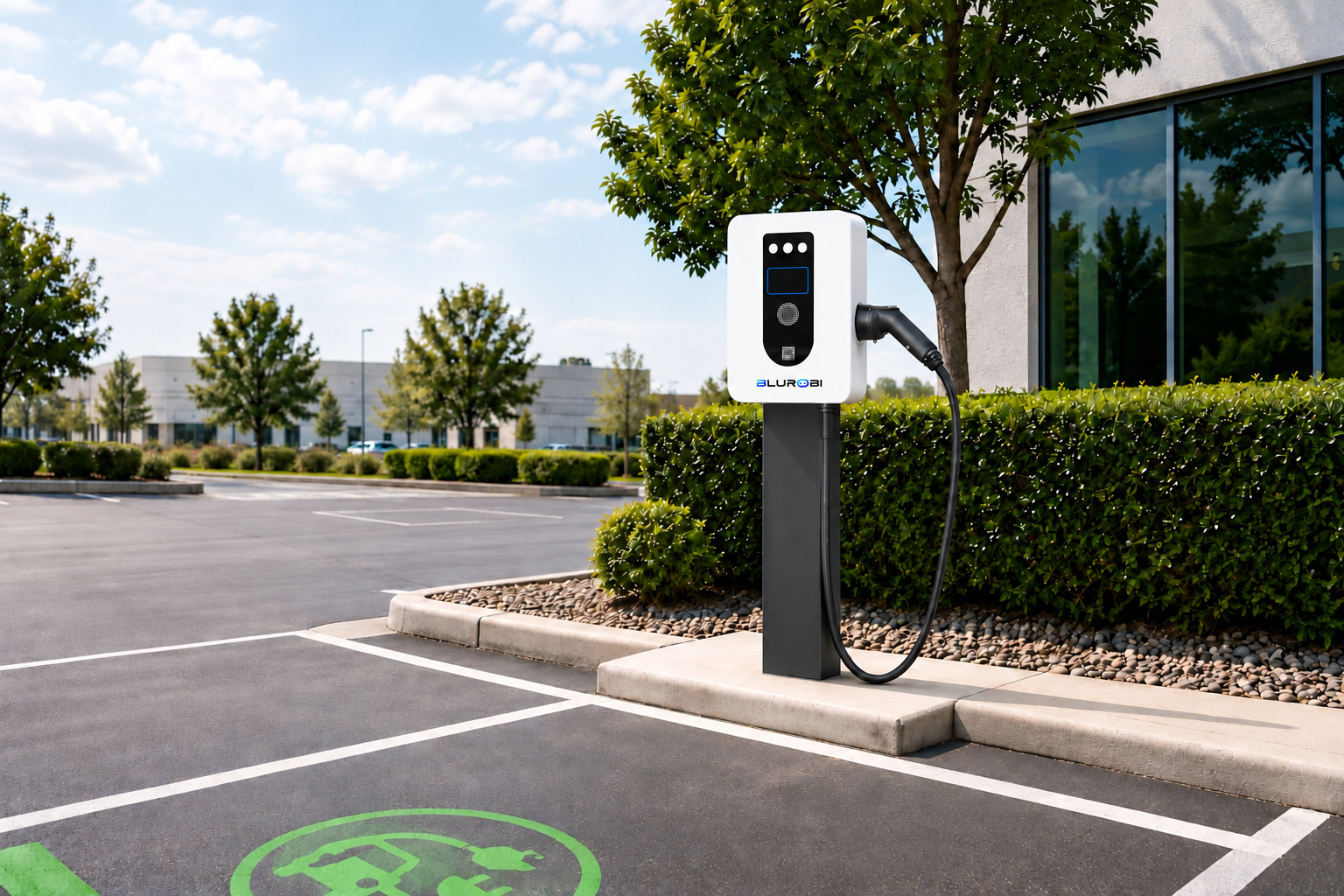

Integrated Charging & Video Management
Combines 7 kW AC charging and video surveillance for one charging bay, eliminating redundant deployment of separate chargers, cameras and site systems.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

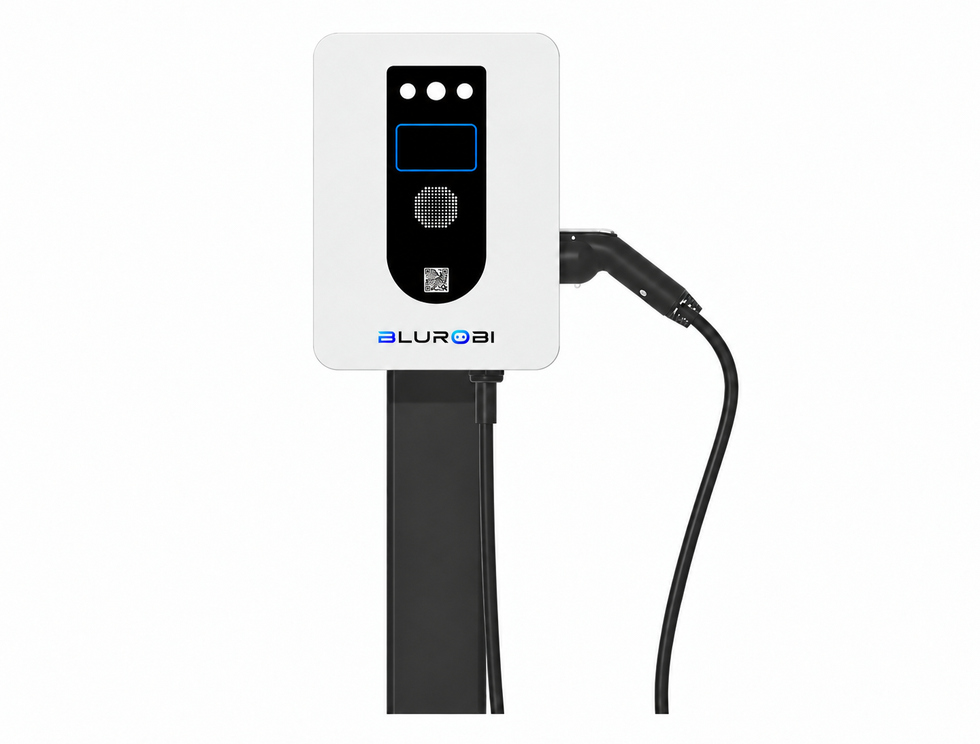

SV-CS-A1-EX Green Giant Parking & Charging All-in-One (AC 7kW)
Integrated AC charging (7kW single-gun) + intelligent monitoring system combining parking management and EV charging in one unit.
4MP Starlight CMOS AI camera monitors 2 charging spaces with real-time vehicle entry/exit recognition above 99%.
Detects abnormal events including cross-line occupancy, non-motor/gasoline vehicle occupancy, personnel loitering, open flames and smoke.
3-inch color touch screen with card, QR code and mobile App charging.
Product Display
Showcase of product features and physical appearance.

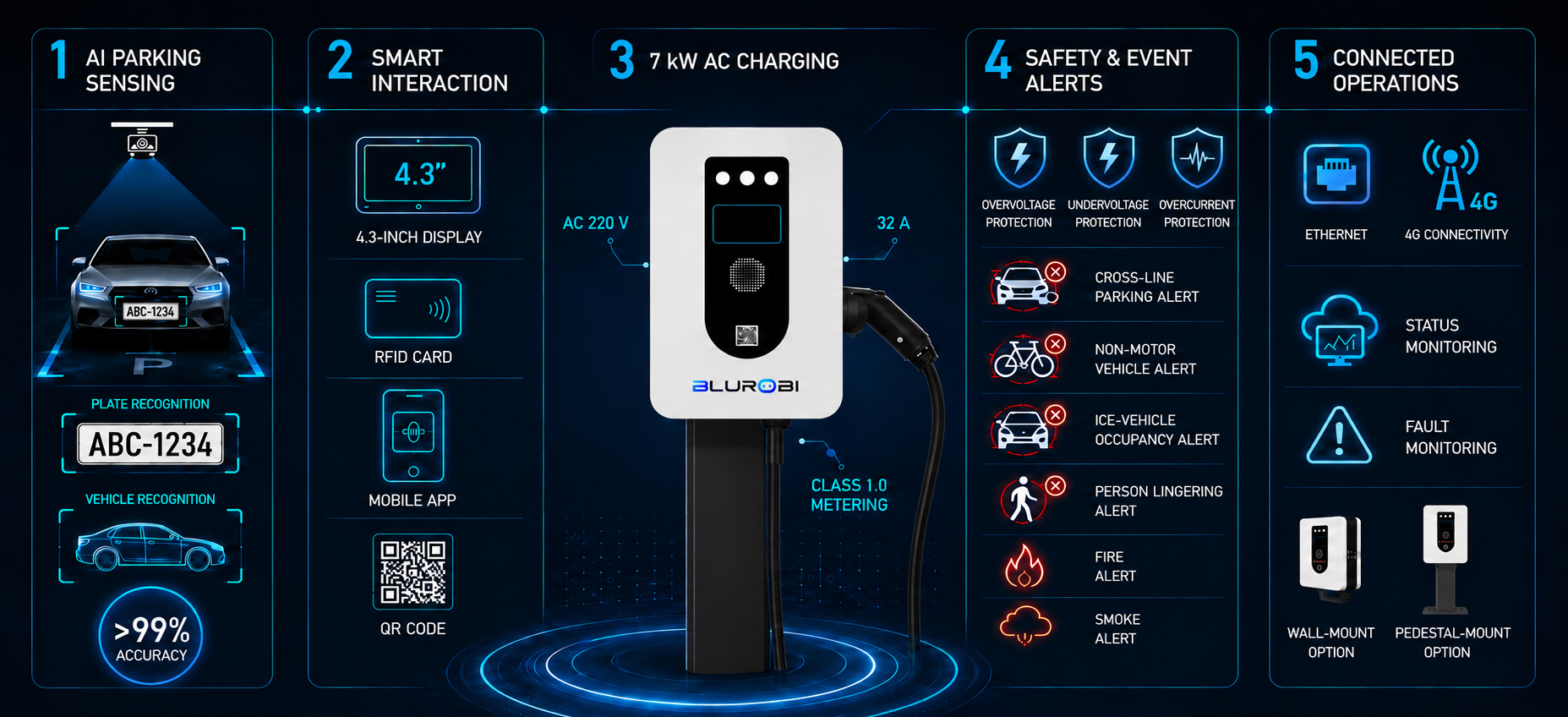

SV-CS-A1-EX Green Giant Parking & Charging All-in-One (AC 7kW)
- All‑in‑one 7kW AC charging & video management, standard‑compliant gun and Class1.0 metering.
- 4MP starlight AI camera,99%+ accurate vehicle and license‑plate recognition.
- AI monitors illegal parking, ICE occupation, loitering, fire and smoke hazards.
- 4.3‑inch display for card, app and QR charging, with full electrical & emergency‑stop protection.
- Ethernet/4G, dual‑mount options, IP54 rated, works across ‑25°C to +55°C.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.

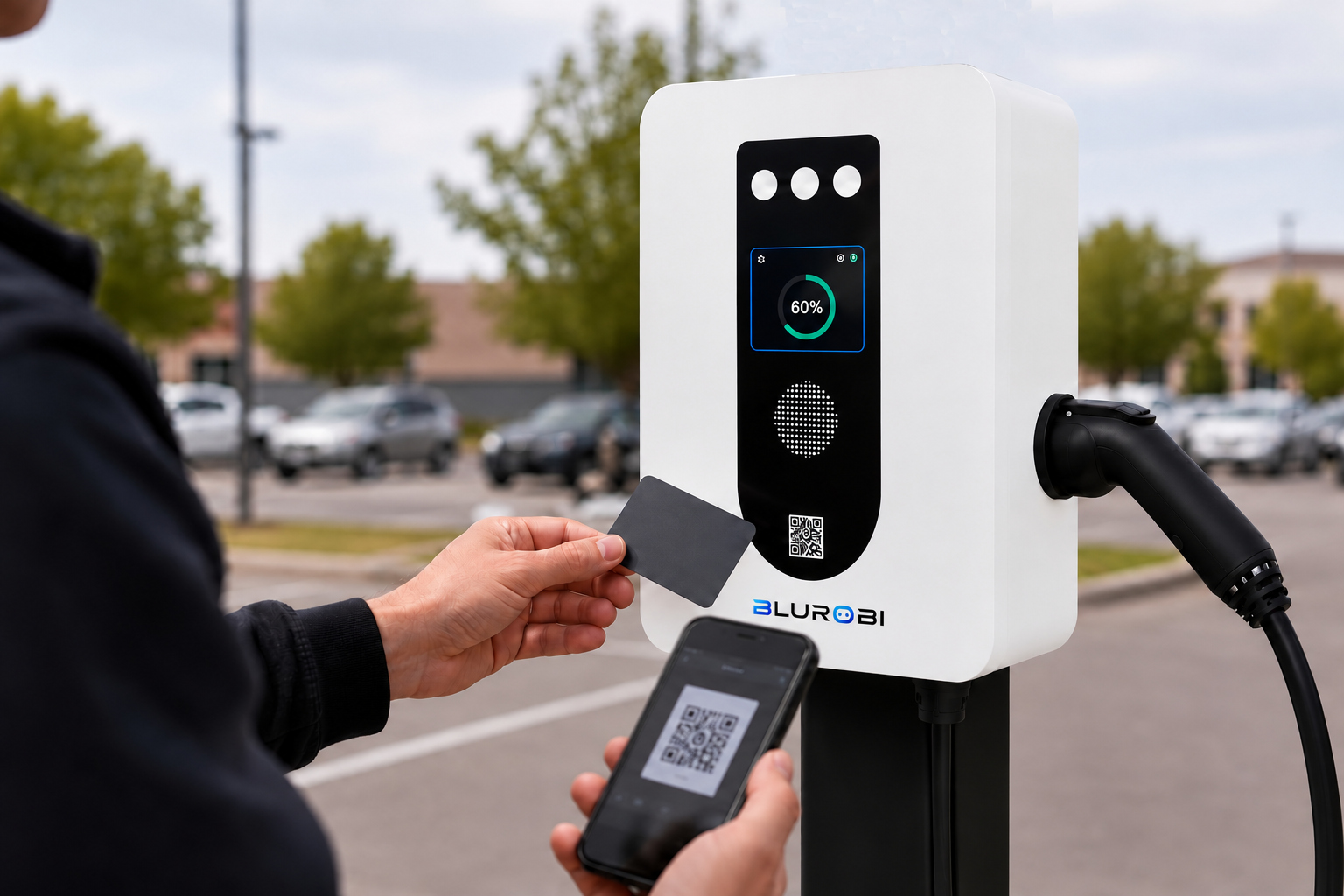

Diverse Charging Modes & Precise Metering
4.3‑inch color display enables card, app and QR‑code charging; Class 1.0 high‑accuracy energy metering supports reliable charging billing.

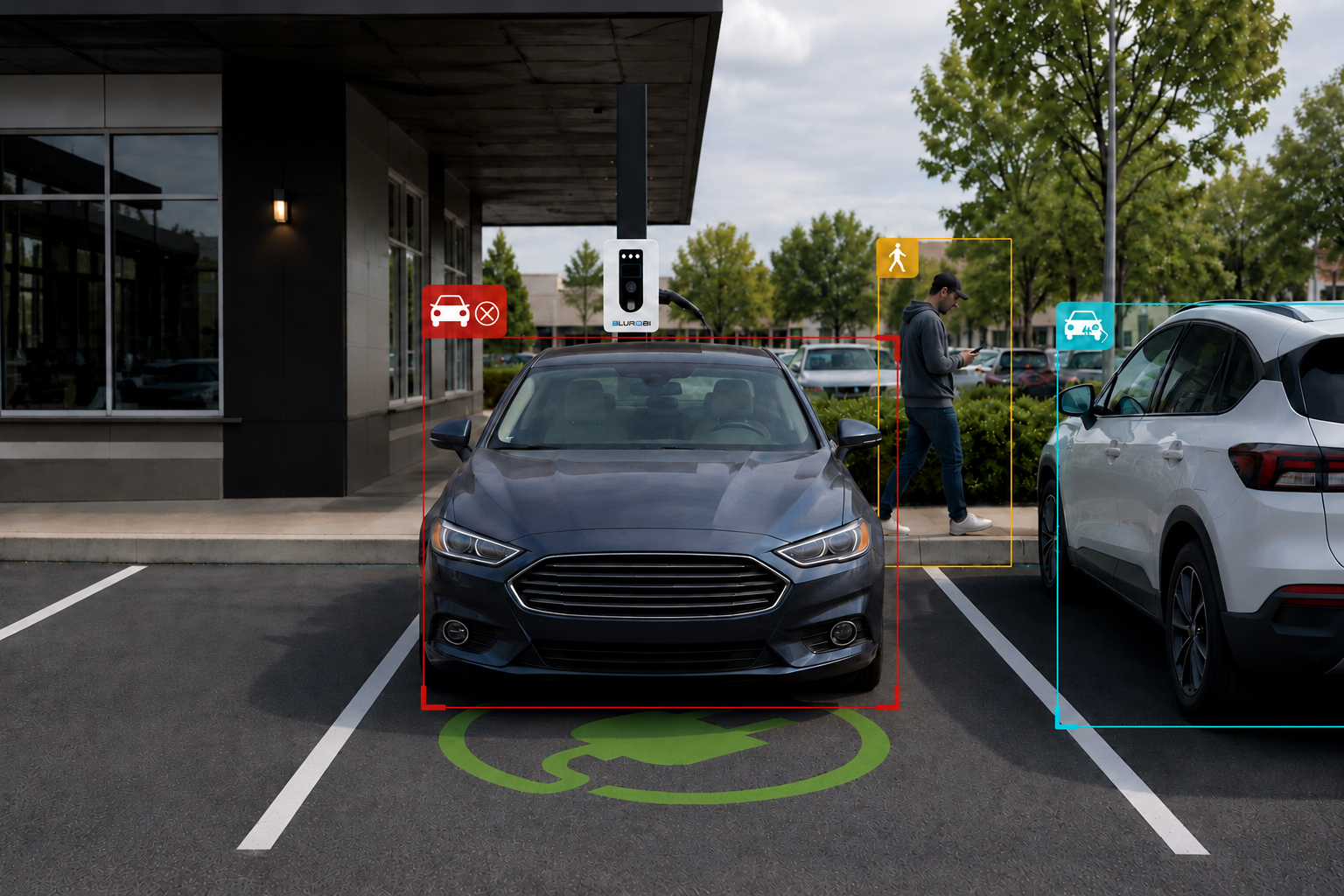

AI‑Powered Identification & Event Alerts
Built‑in 4MP AI camera captures license plate, vehicle type and access events; triggers alerts for illegal parking, internal‑combustion‑vehicle occupation, loitering, fire and smoke.

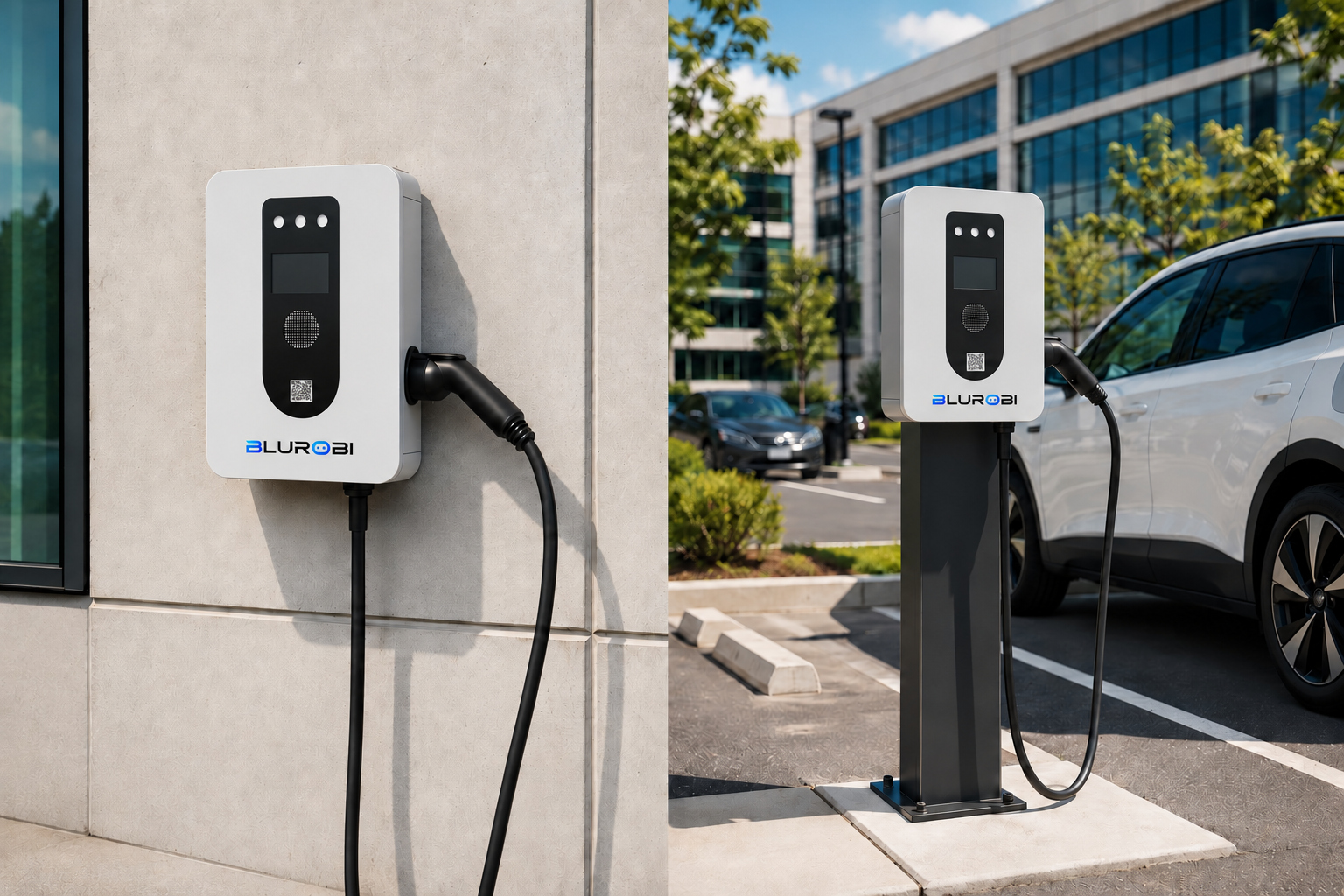

Versatile Installation & Cloud‑Connected Management
Supports wall‑mount and pedestal mounting. Ethernet / 4G connectivity delivers real‑time status and fault monitoring for connected charging operations.
Application Scenarios
Typical real‑world deployment environments for the product.

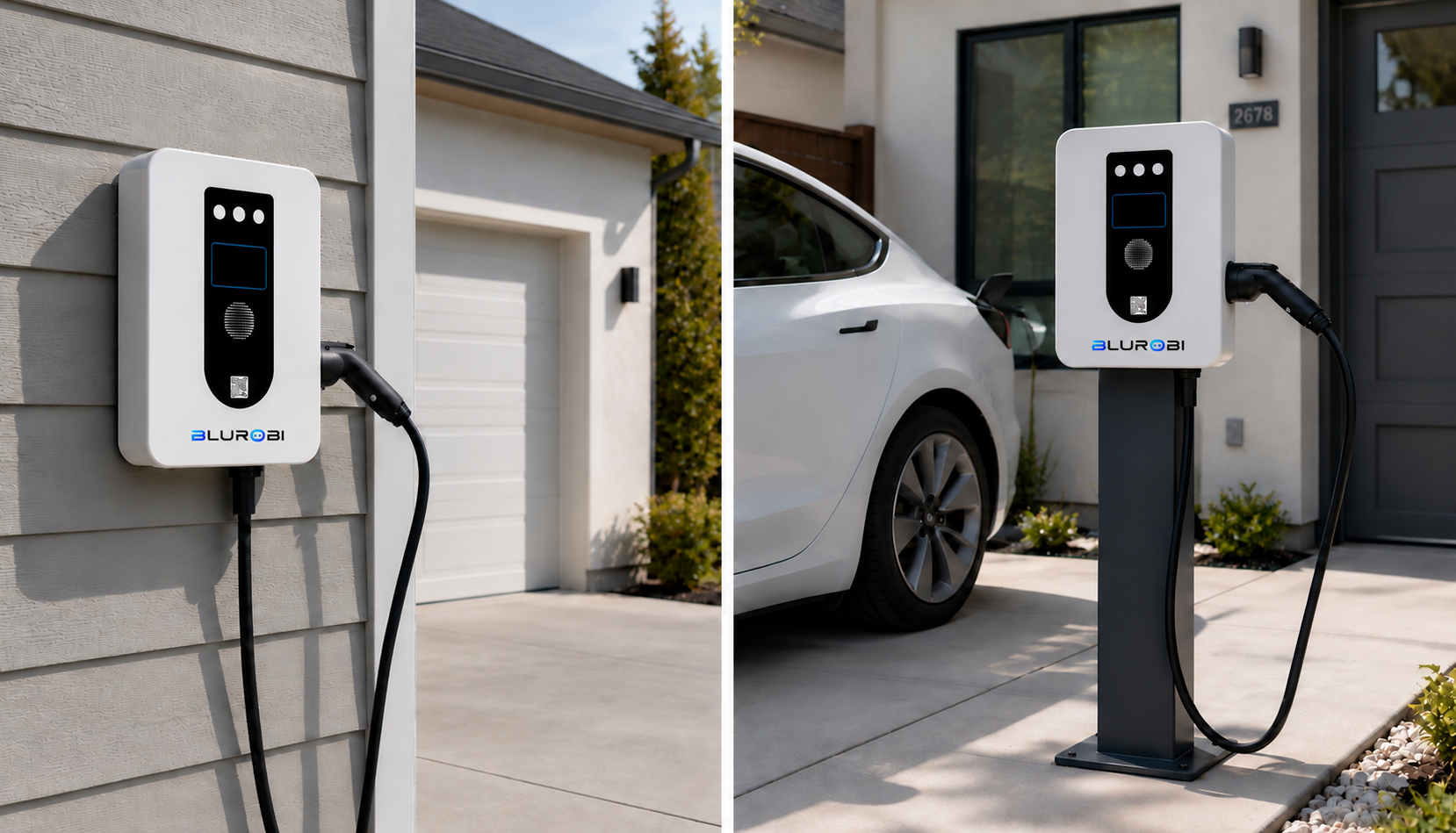

Residential Communities
Wall‑mount/pedestal setup for residential parking: 7kW charging, vehicle recognition and anomaly alerts.

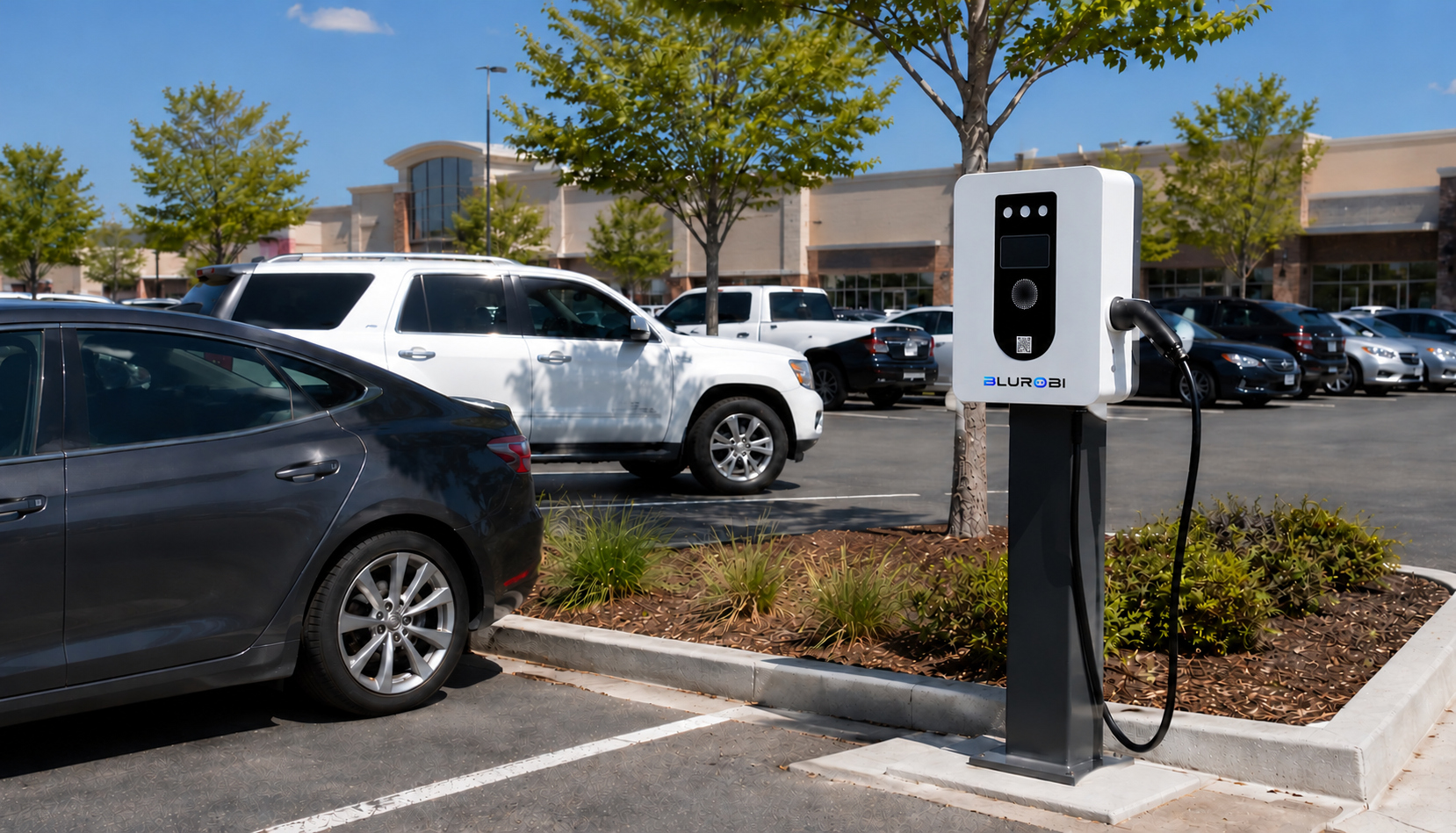

Commercial and Public Parking Lots
Card/app/QR‑code charging and single‑bay management for malls, offices and campuses.

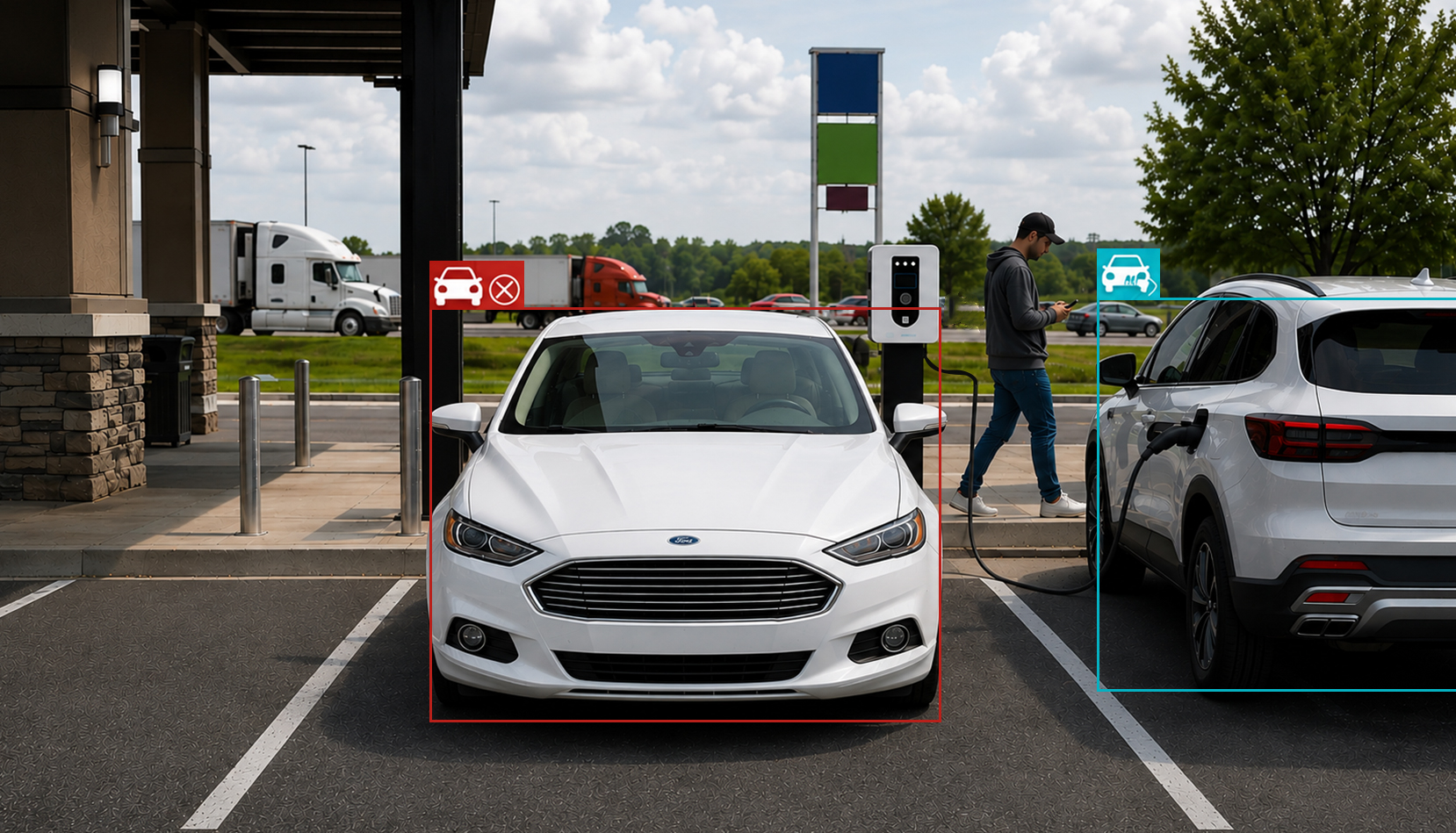

Charging Stations and Service Areas
Ethernet/4G uploads status & faults, with vehicle and hazard detection for roadside charging bays.
Product Specifications
Showcase of product features and physical appearance.
- Charging
- Rated Power7 kW
- Input / Output VoltageAC 220V +/- 15%
- Output Current32 A
- Input Frequency50 +/- 1 Hz
- Metering AccuracyClass 1.0
- StandardGB/T 20234
- Charging MethodsCard swiping, QR code scanning, mobile App
- Cable Length5 m
- AI Recognition
- Image Sensor4 MP Starlight CMOS
- Fill LightIntelligent High-Brightness LED
- Video EncodingH.264 / H.265
- Video Resolution2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 @ 1 ~ 30 fps
- OSD OverlayReal-time OSD overlay supported
- Coverage2 charging spaces
- DetectionCross-line occupancy, non-motor vehicle occupancy, gasoline vehicle occupancy, personnel loitering
- Abnormal EventsSmoke and flame detection with alarm triggers
- Safety
- ProtectionOvervoltage, undervoltage, overcurrent protection
- Emergency StopEmergency stop button for immediate charging termination
- Fault DiagnosisOperating status monitoring and fault diagnosis functions
- General
- Display4.3-inch Color Touch Display
- NetworkEthernet, 4G
- Operating Temp-25 C ~ 55 C
- Humidity5% ~ 95% (no frost)
- ProtectionIP54
- Dimensions245 x 350 x 110 mm
- WeightApprox. 6 kg
- InstallationWall Mount / Floor-Standing Column
- Applications
- ApplicationsResidential communities, general parking lots, charging stations, and highway service areas.
