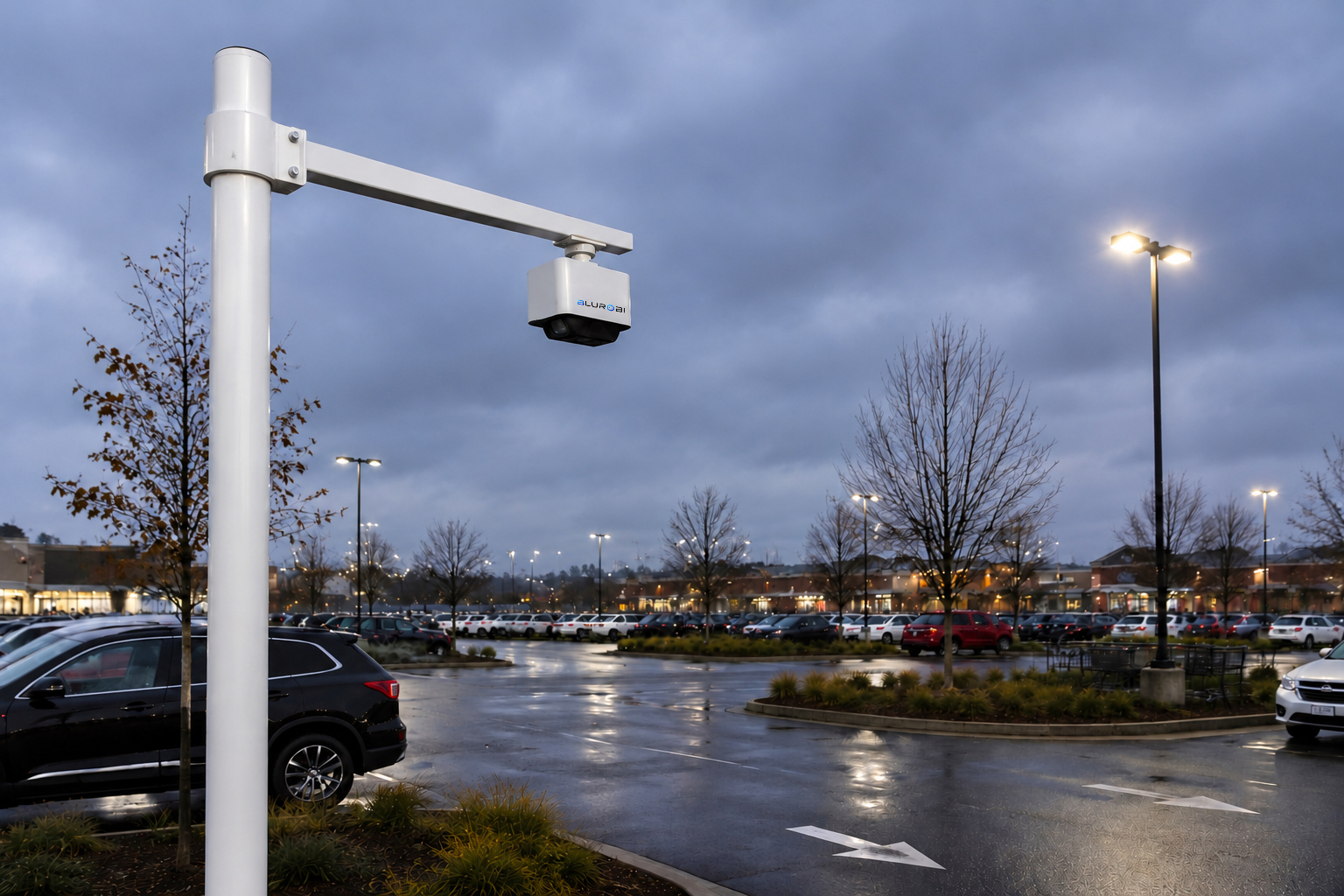

Star‑Grade Triple‑Lens Imaging
8MP starlight‑level CMOS sensor delivers multi‑angle high‑definition imaging even under low‑light conditions.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

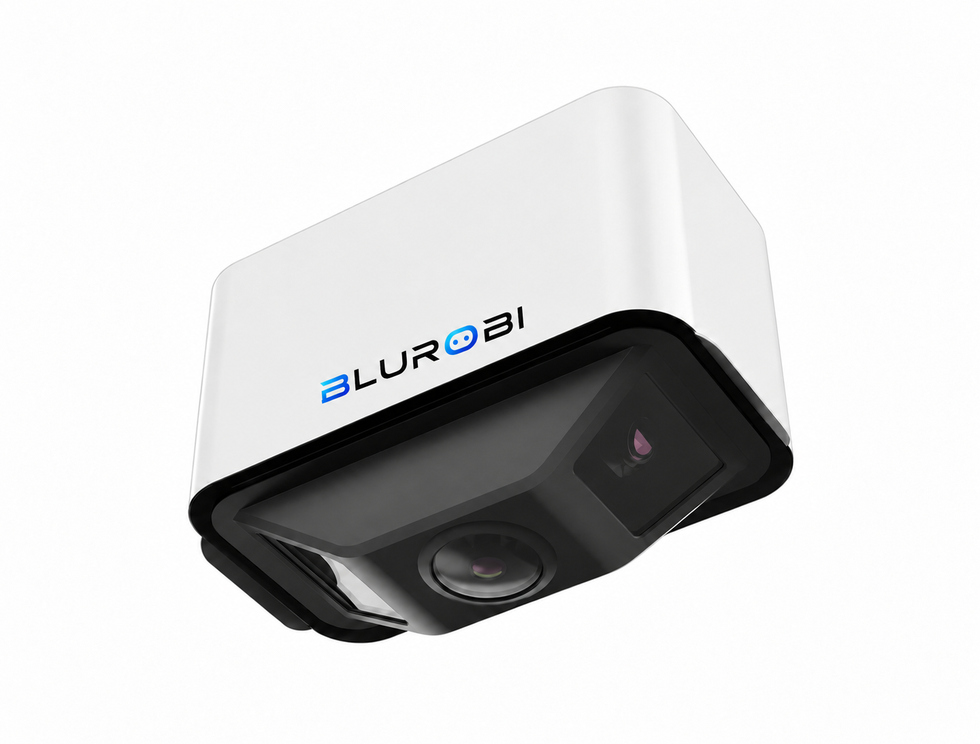

SV-PR-M3A-EX Super Eye High-Position Camera (6-space)
New-generation 8MP ultra-high-definition AI hardware.
3x8MP (2x fixed-focus large-sensor + 1x wide-angle), total 24MP.
Manages 6 linear spaces with cross-camera tracking.
Motorized zoom + wide-angle lens.
6m ceiling mount, IP67.
Product Display
Showcase of product features and physical appearance.
SV-PR-M3A-EX Super Eye High-Position Camera (6-space)
- New-generation 8MP ultra-high-definition AI hardware.
- 3x8MP (2x fixed-focus large-sensor + 1x wide-angle), total 24MP.
- Manages 6 linear spaces with cross-camera tracking.
- Motorized zoom + wide-angle lens.
- 6m ceiling mount, IP67.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.

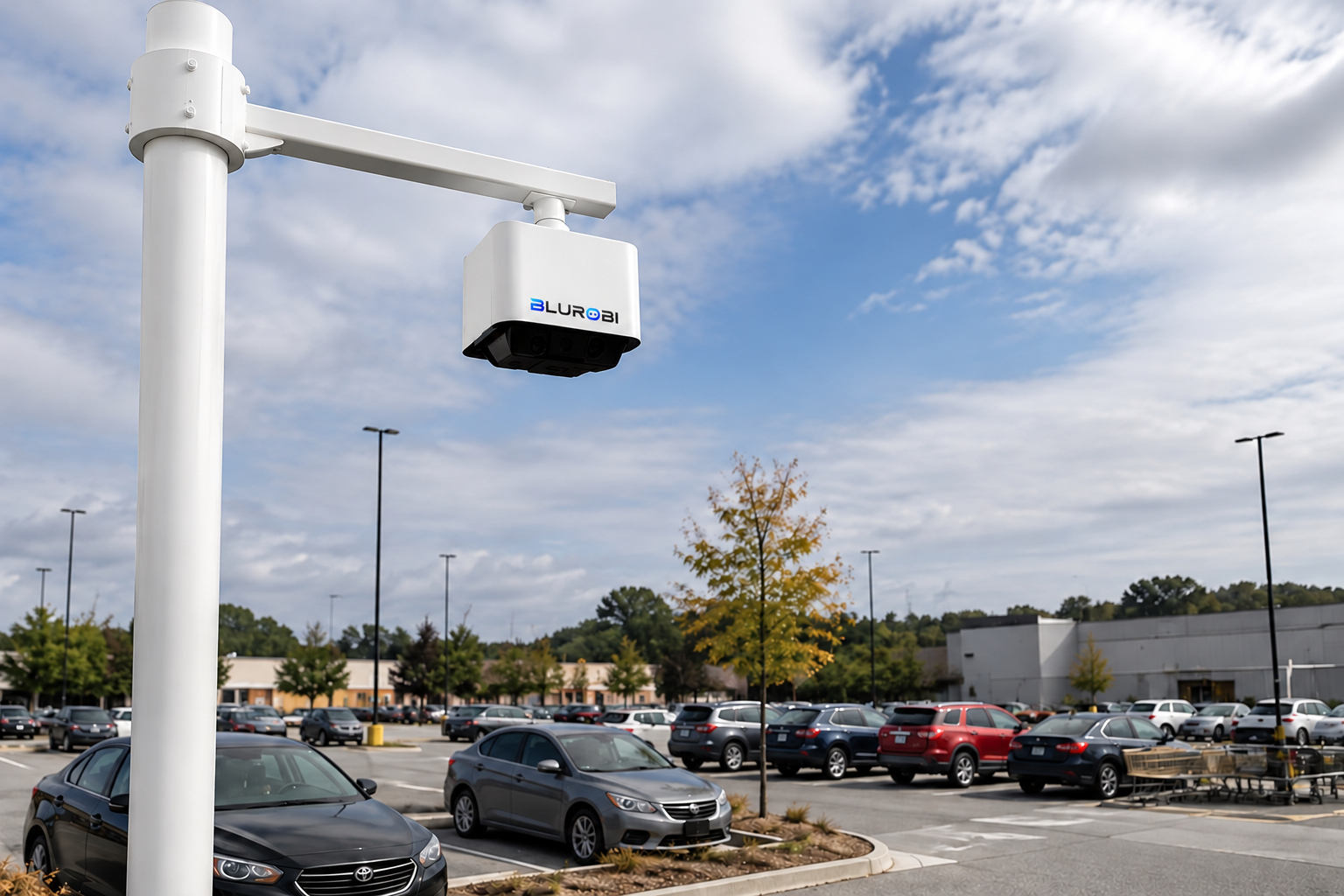

Mini‑PTZ Motorized Focus
Built‑in mini PTZ structure supports motorized focusing for fast on‑site calibration for pole‑mount installation.

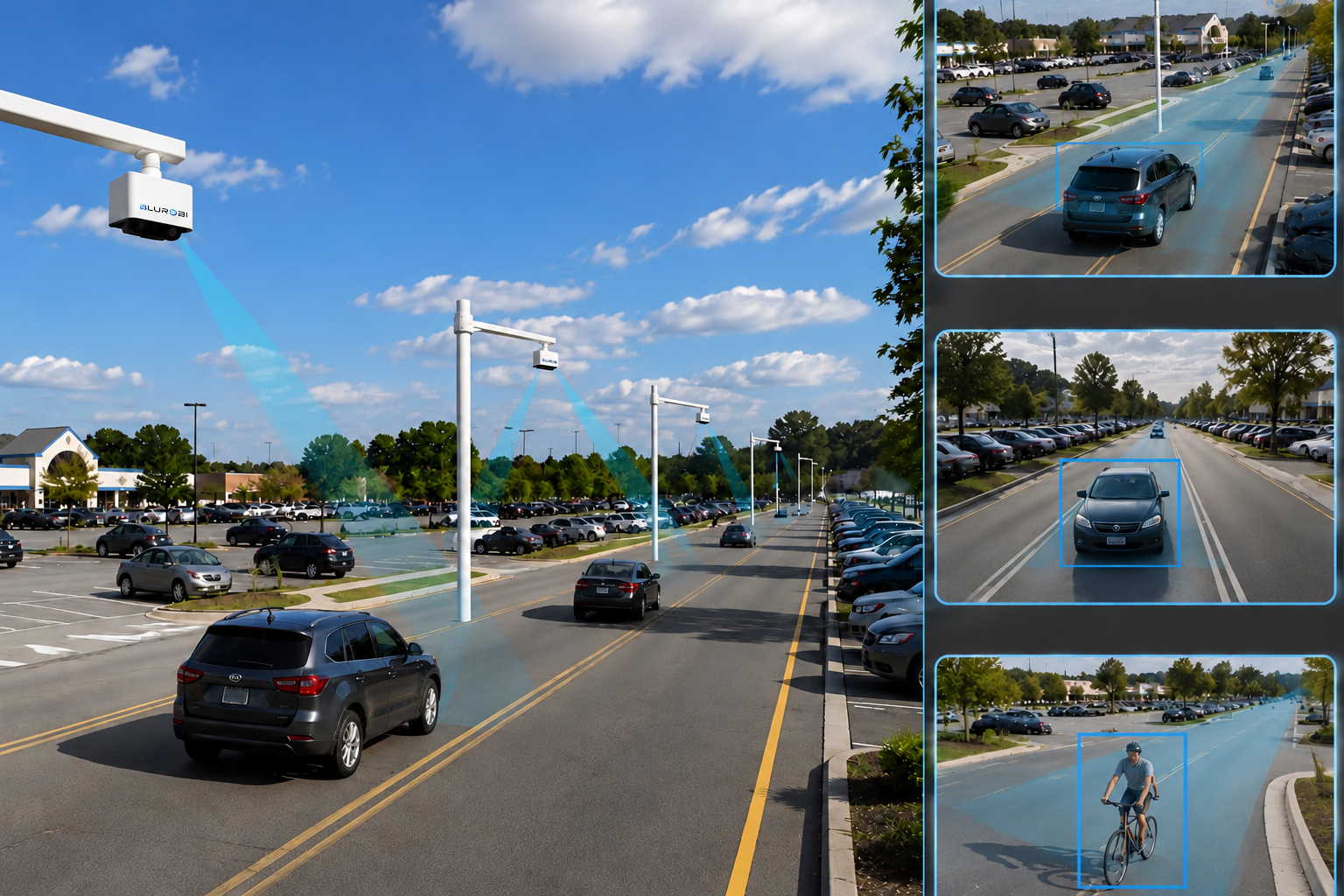

High‑Precision AI & Cross‑Lens Tracking
On‑device AI detects motor vehicles and non‑motorized objects, realizing seamless relay tracking across multiple cameras.

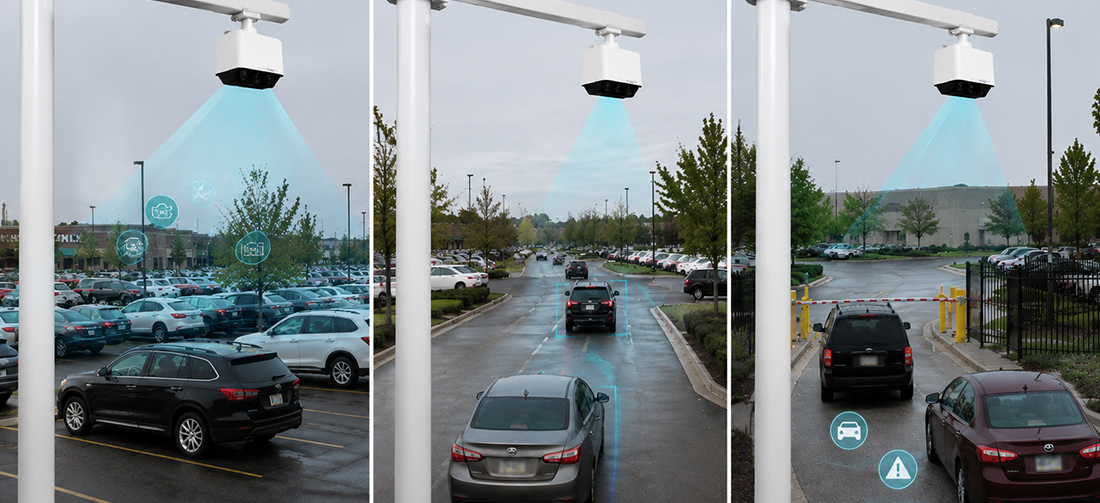

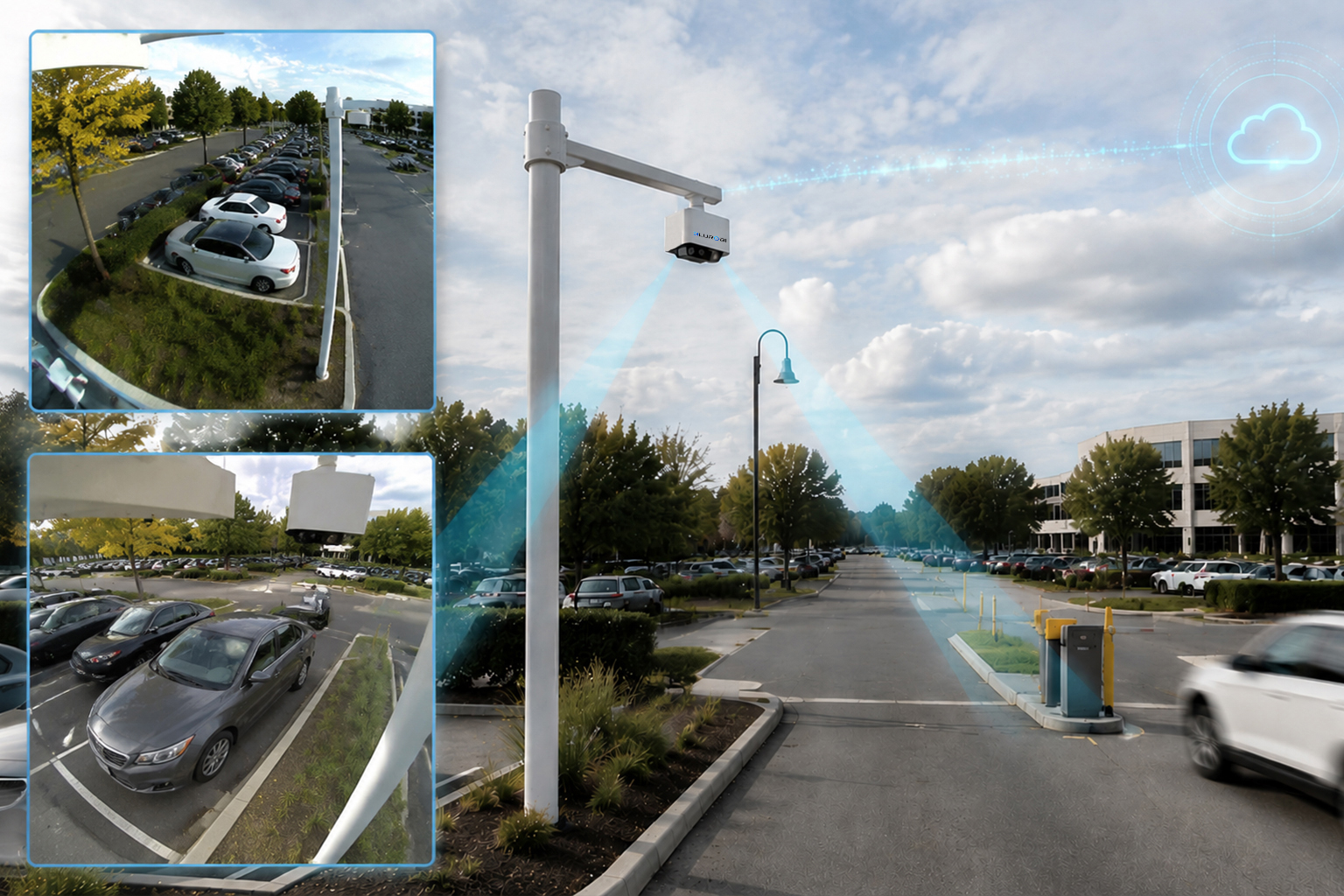

Full‑Scene Coverage & IoT Remote O&M
Cover pole‑bottom blind‑spot parking spaces and gated lot gateways. IoT centralized management simplifies large‑scale operation & maintenance
Application Scenarios
Typical real‑world deployment environments for the product.

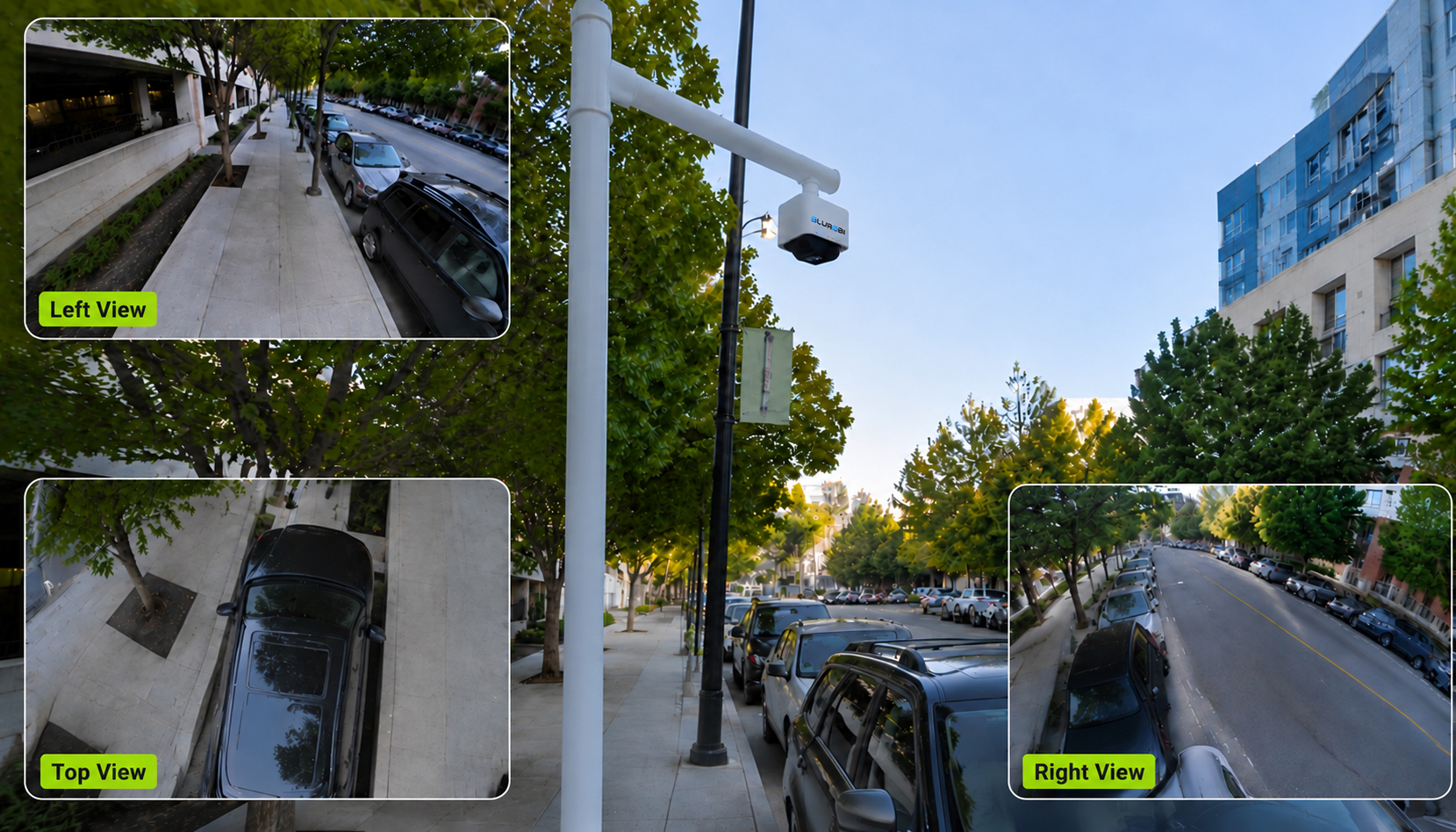

Urban Roadside Parking
Triple‑lens coverage for forward, reverse and pole‑blind‑spot parking bays.

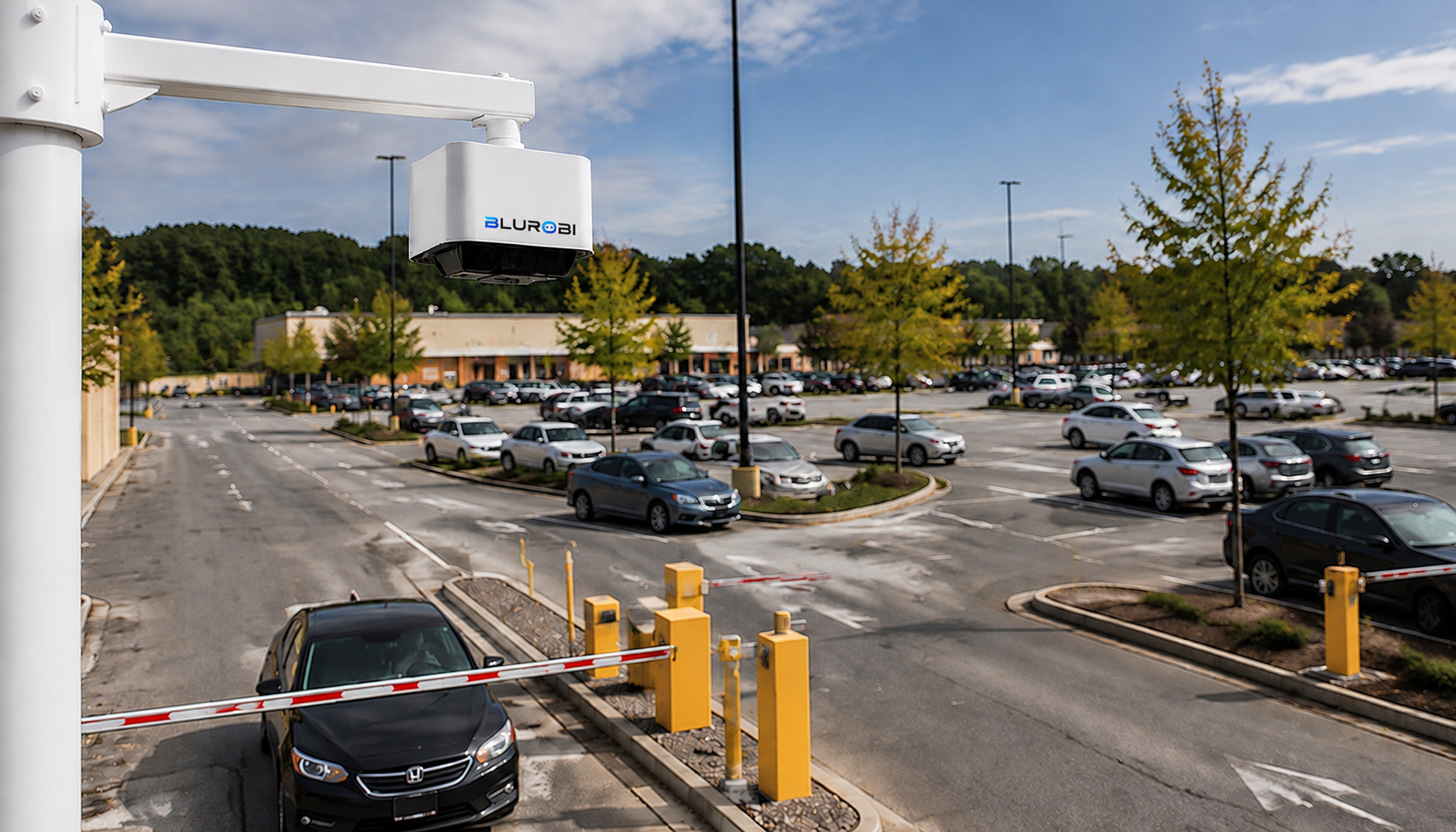

Parking Lot Access Control
High‑angle triple‑lens monitoring,continuous vehicle tracking,detect tailgating,U‑turn and lane occupation.

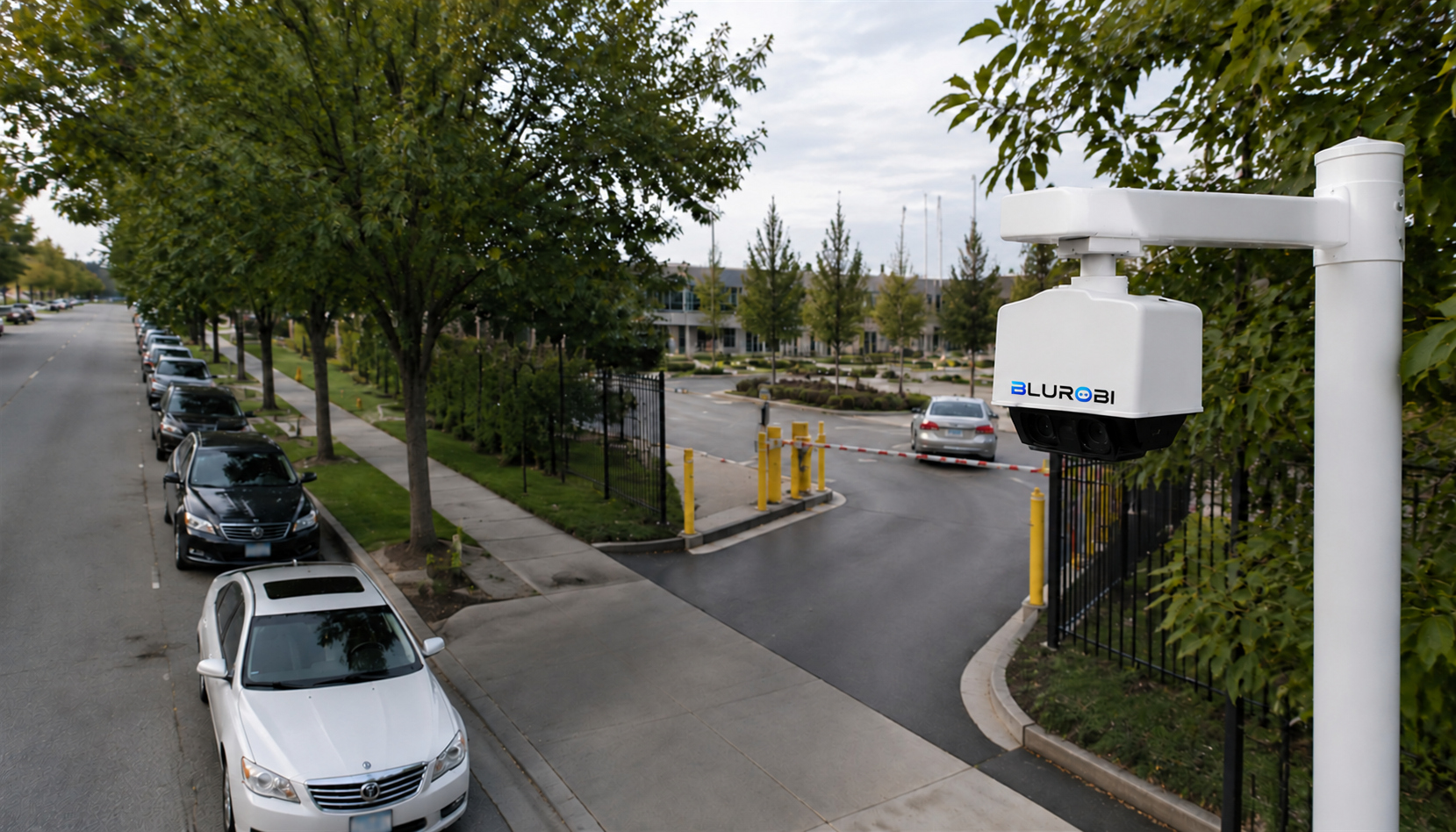

Semi‑Open Park Compound Management
Single device supports both curbside bays and compound gateways for hybrid scenarios.
Product Specifications
Showcase of product features and physical appearance.
- Camera
- Sensor8 MP, 1/1.8-inch Starlight CMOS x3
- Memory4 GB
- Flash32 GB (expandable)
- Min IlluminationColor: 0.001 lx / B/W: 0.0001 lx
- ProtocolONVIF, GB/T28181
- CompressionH.264, H.265
- Bitrate256 Kbps ~ 16 Mbps
- Frame Rate1 ~ 30 fps
- ShutterAuto/Manual 1/25 ~ 1/1000 s
- Main Stream3840 x 2160 @ 30 fps
- Sub Stream1920 x 1080 @ 30 fps
- Lens
- Telephoto Focal Length4.46 ~ 11 mm, FN 1.47-C
- Wide-Angle Focal Length3.12 mm, FN 1.8
- FocusMotorized Zoom & Focus
- Intelligent
- Parking Capacity6 spaces
- License Recognition>= 99%
- Detection Accuracy>= 99%
- Abnormal AlarmsReverse, line-straddling, cross-space, non-motor vehicle
- ApplicationsRoadside parking, illegal parking, traffic order, smart security
- General
- VoltageDC 12V +/- 5%
- Power11 W
- Weight6.5 kg
- Dimensions359 x 356 x 180 mm
- Operating Temp-30 C ~ 70 C
- ProtectionIP67
